3033376

EZ-BEAM S30 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 4-pin M12 Integral QD

Manufacturer's No: S306EQ     Manufacturer: Turck Banner
EZ-BEAM S30 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 4-pin M12 Integral QD

Availability On Request

£79.85
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 10-30 VDC
  • Maximum range: 60000 mm
  • M12 × 1 male connector, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40°C to +70°C


Product

Manufacturer Material ID -
S306EQ
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius

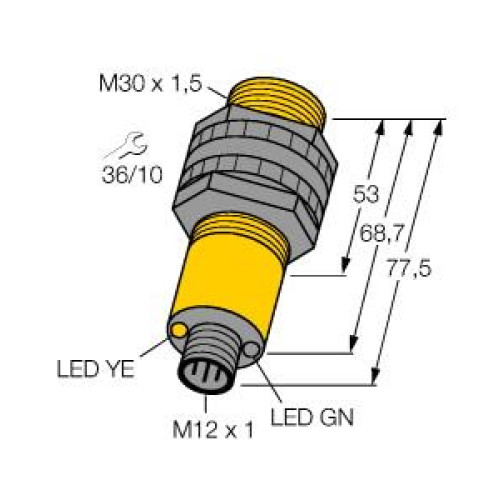

Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
77.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Turck Banner

Availability On Request

£79.85
