3032340

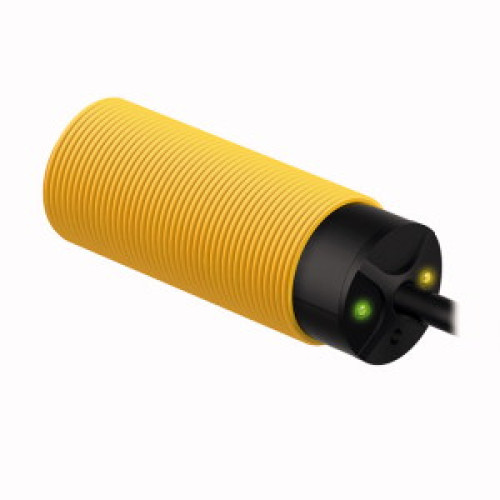

EZ-BEAM S30 Series: Receiver, Range: 60 m, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 2 m (6.5 ft) Cable

Manufacturer's No: S30AW3R     Manufacturer: Turck Banner
EZ-BEAM S30 Series: Receiver, Range: 60 m, Input: 20-250 V ac, Output: SPST Solid-state Light Operate, 2 m (6.5 ft) Cable

Availability On Request

£119.77
  • Type: Photoelectric Sensor (Opposed Mode - Receiver)
  • Operating Voltage: 20-250 VAC
  • Max. Range: 60000 mm
  • Cable Length: 2 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C


Product

Manufacturer Material ID -
S30AW3R
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
80.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Cable
Type of switch function -
Other
Type of switching output -
Relay contact
Turck Banner

Availability On Request

£119.77
