3033368

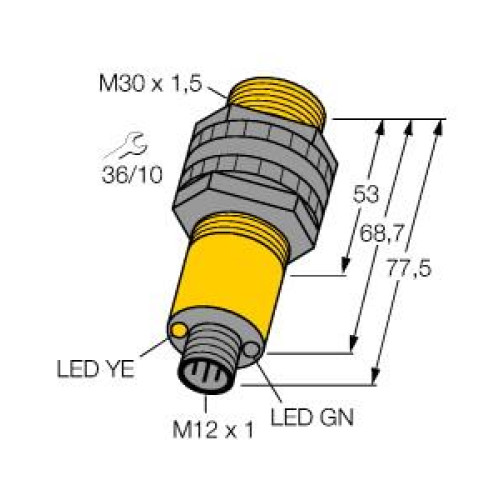

EZ-BEAM S30 Series: Fixed Field, Range: 200, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: S30SN6FF200Q     Manufacturer: Turck Banner
EZ-BEAM S30 Series: Fixed Field, Range: 200, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£138.83
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 200 mm
  • M12 x 1 male connector with 4-pin configuration
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40°C to +70°C
  • NPN switching output with changeover functionality


Product

Manufacturer Material ID -
S30SN6FF200Q
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
77.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
200 Millimetre
Rated switching distance -
200 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre
Turck Banner

Availability On Request

£138.83
