3032335

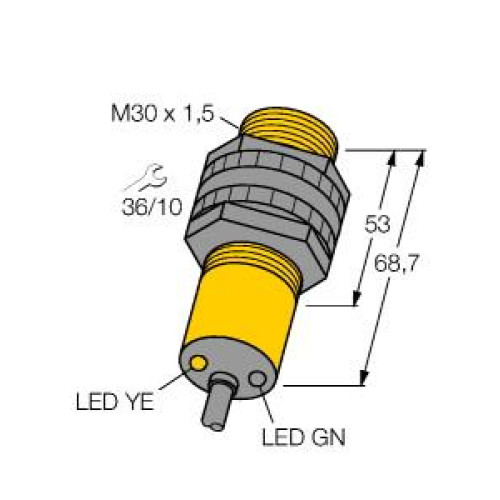

EZBEAM S30 Series: Fixed Field; Range: 600 mm; Input: 1030V dc; Output: Complementary NPN; 2 m 6.5 ft Cable;

Manufacturer's No: S30SN6FF600
EZBEAM S30 Series: Fixed Field; Range: 600 mm; Input: 1030V dc; Output: Complementary NPN; 2 m 6.5 ft Cable;

Availability Back Order

£164.84
  • EZBEAM S30 Series
  • Fixed field sensor
  • Range: 600 mm
  • Input: 10-30V dc
  • Output: Complementary NPN
  • Cable length: 2 meters (6.5 feet)


Product

Manufacturer Material ID -
S30SN6FF600
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
68.7 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
600 Millimetre
Rated switching distance -
600 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre


Availability Back Order

£164.84
