3033373

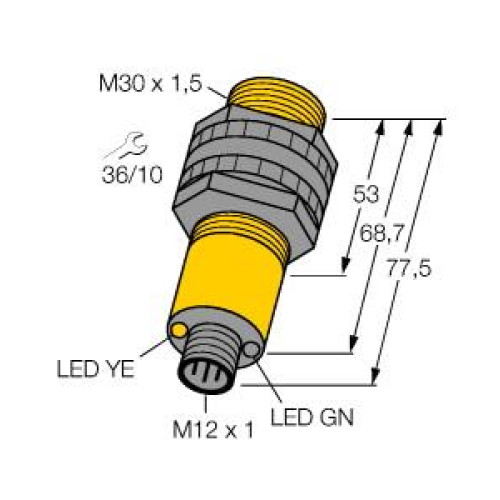

EZ-BEAM S30 Series: Polarized Retro, Range: 6 m, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: S30SP6LPQ     Manufacturer: Turck Banner
EZ-BEAM S30 Series: Polarized Retro, Range: 6 m, Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Availability On Request

£117.96
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10 to 30 VDC
  • Maximum range: 6000 mm
  • M12 × 1 male connector with 4-pin configuration
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40°C to +70°C
  • PNP switching output with changeover functionality


Product

Manufacturer Material ID -
S30SP6LPQ
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
77.5 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Turck Banner

Availability On Request

£117.96
