2CCS571103R8254

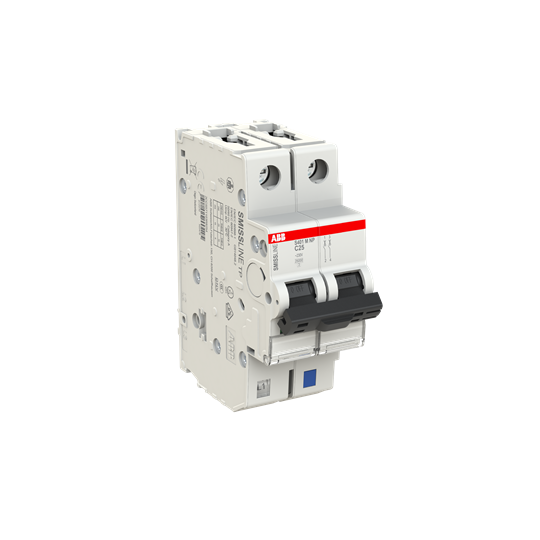

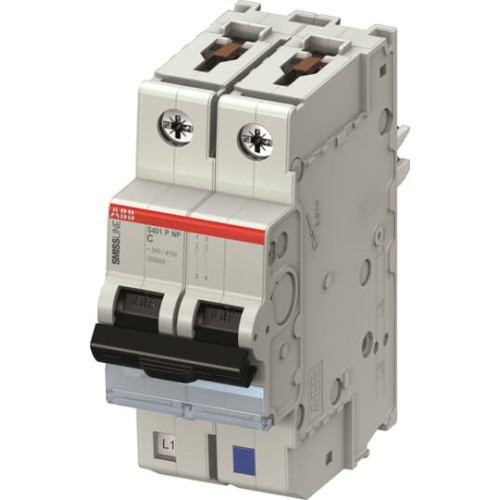

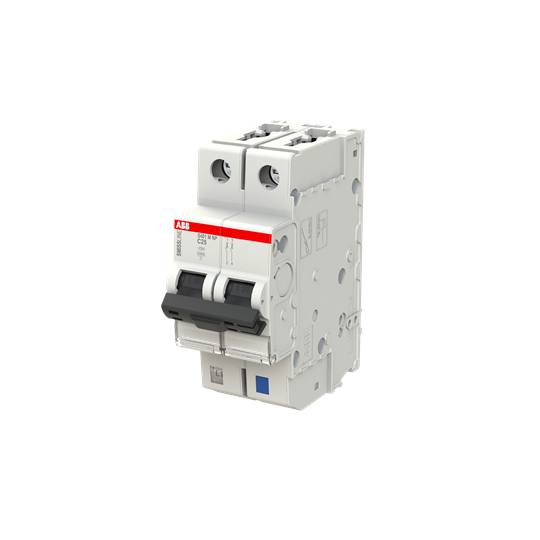

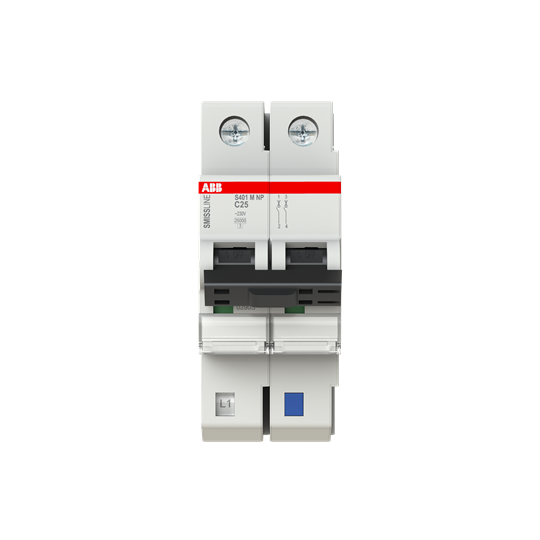

S401M-C25NP Miniature Circuit Breaker

Manufacturer's No: S401M-C25NP,2CCS27     Manufacturer: ABB
S401M-C25NP Miniature Circuit Breaker

Availability On Request

£71.75
  • Miniature Circuit Breaker (MCB) model: S401M-C25NP
  • Current limiting MCB with delayed thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Available in characteristics: B, C, D, K
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N
  • Breaking capacities: Up to 10 kA at 240/415 V AC
  • Rated currents: Up to 63A
  • Complies with IEC/EN 60898-1 for B, C, D characteristics and IEC/EN 60947-2 for C, K characteristics
  • Pluggable solution for SMISSLINE TP System
  • Suitable for commercial, industrial, and critical power applications


Product

Manufacturer Material ID -
S401M-C25NP,2CCS27
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
82 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
3
Power loss -
4.8 Watt
Rated current -
25 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
240 Volt
Recess depth -
82 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability On Request

£71.75
