2CCS572001R0404

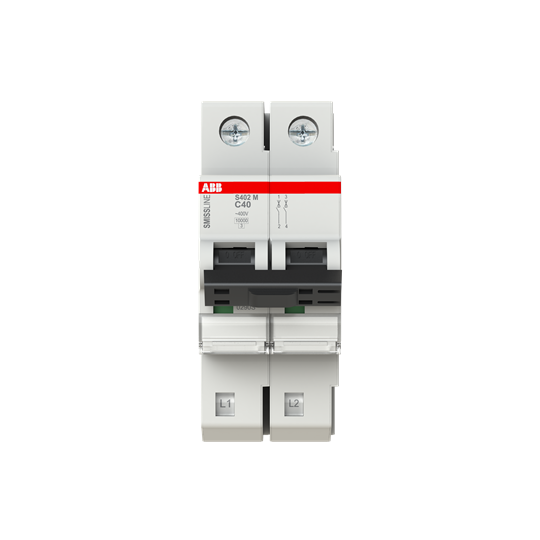

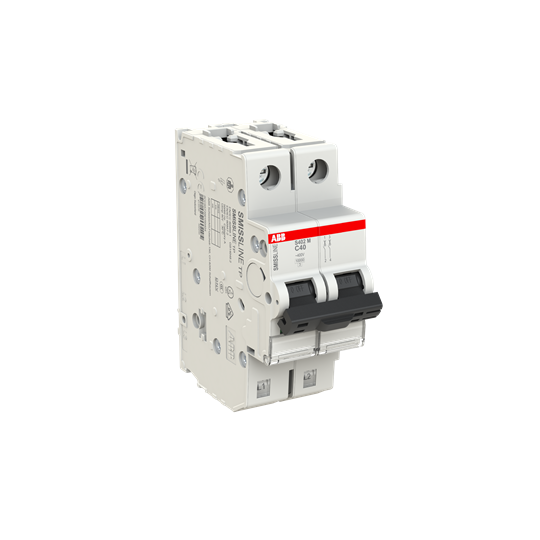

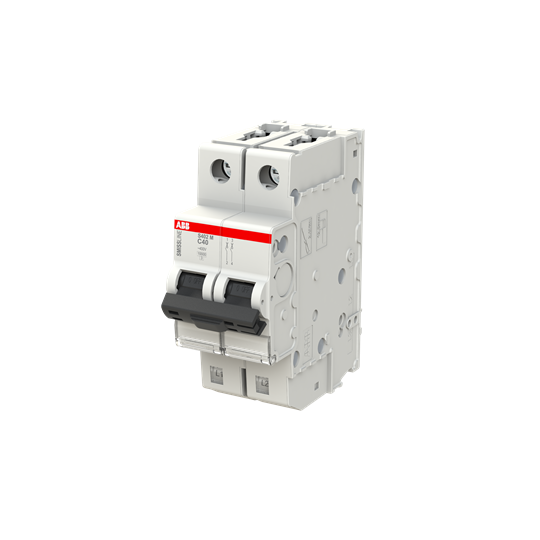

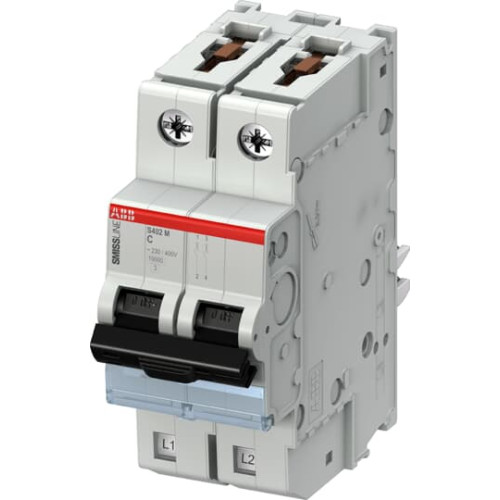

S402M-C40 Miniature Circuit Breaker

Manufacturer's No: S402M-C40, 2CCS572     Manufacturer: ABB
S402M-C40 Miniature Circuit Breaker

Availability Back Order

£104.70
  • S402M-C40 Miniature Circuit Breaker
  • Current limiting with delayed thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Available in characteristics: B, C, D, K
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N
  • Breaking capacities up to 10 kA at 240/415 V AC
  • Rated currents up to 63A
  • Complies with IEC/EN 60898-1 for B, C, D characteristics and IEC/EN 60947-2 for C, K characteristics
  • Pluggable solution for SMISSLINE TP System
  • Suitable for commercial, industrial, and critical power applications


Product

Manufacturer Material ID -
S402M-C40, 2CCS572
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
75 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
3
Power loss -
7.4 Watt
Rated current -
40 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
415 Volt
Recess depth -
75 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability Back Order

£104.70
