2CCS811001R0405

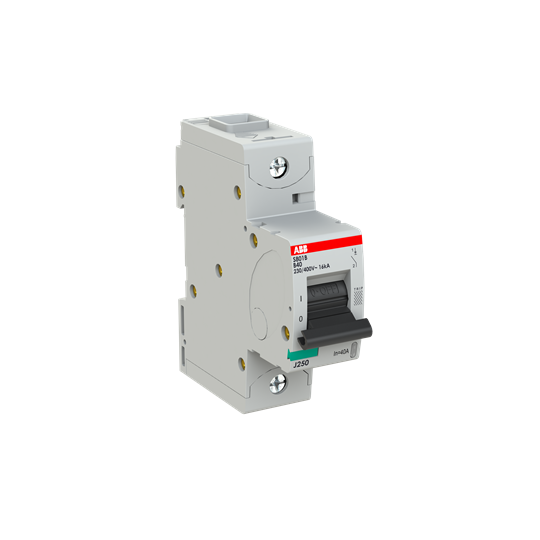

S801B-B40 High Performance MCB

Manufacturer's No: S801B-B40     Manufacturer: ABB
S801B-B40 High Performance MCB

Availability On Request

£54.13
  • Type: 1-pole High Performance MCB
  • Characteristic: B
  • Rated Current: 40 A
  • Maximum Breaking Capacity: 16 kA at 230/400V
  • Voltage: Up to 230/400V
  • Tripping Mechanisms: Thermal for overload protection, Electromechanic for short circuit protection
  • Standards: IEC/EN 60947-2, EN 60898-1
  • Applications: Residential, commercial, industrial
  • Approvals: Compliant with various standards for global use
  • Accessories: Extensive range available

Read more

  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S801B-B40
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
16 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
3
Power loss -
3.7 Watt
Rated current -
40 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
16 kiloampere
Rated voltage -
230 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
1.5
ABB

Availability On Request

£54.13
