2CCS861001R0061

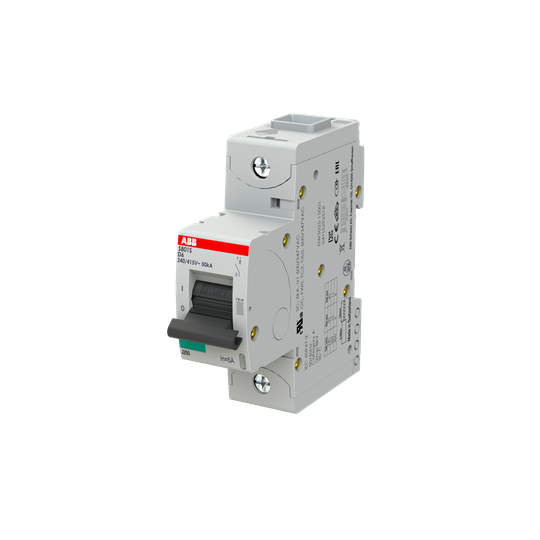

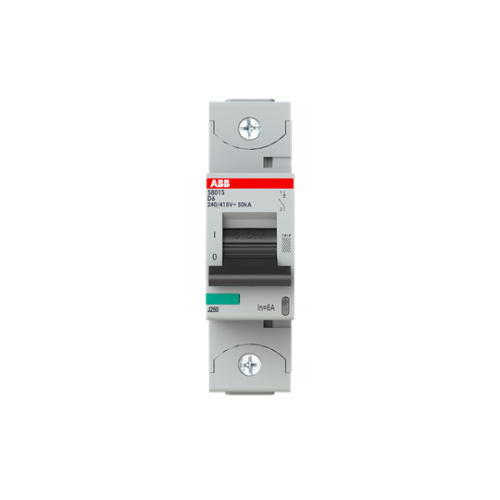

S801S-D6 High Performance MCB

Manufacturer's No: S801S-D6     Manufacturer: ABB
S801S-D6 High Performance MCB

Availability On Request

£100.98
  • Type: 1-pole High Performance MCB
  • Characteristic: D
  • Rated Current: 6 A
  • Maximum Breaking Capacity: 50 kA at 240/415V
  • Voltage Range: Up to 400/690V (AC and DC)
  • Tripping Mechanisms: Thermal for overload protection, Electromechanic for short circuit protection
  • Compliance: IEC/EN 60947-2 for industrial applications
  • Approvals: Compliant with numerous standards for global use
  • Accessories: Extensive range available for added convenience
  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S801S-D6
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
D
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
4
Pollution degree -
3
Power loss -
1.8 Watt
Rated current -
6 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
690 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
6 kiloampere
Rated voltage -
230 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
Other
Width in number of modular spacings -
1.5
ABB

Availability On Request

£100.98
