2CCS881017R0527

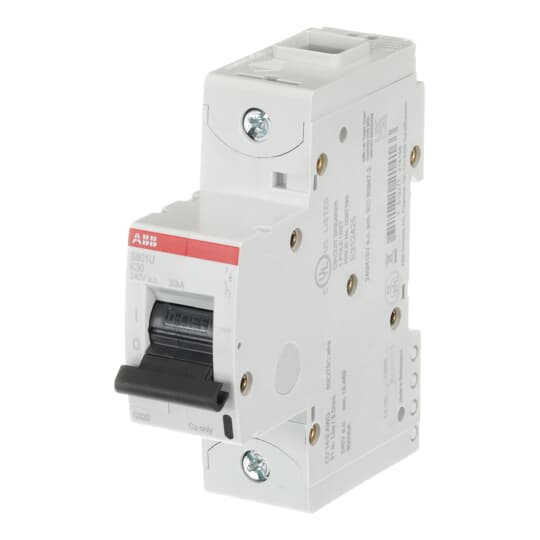

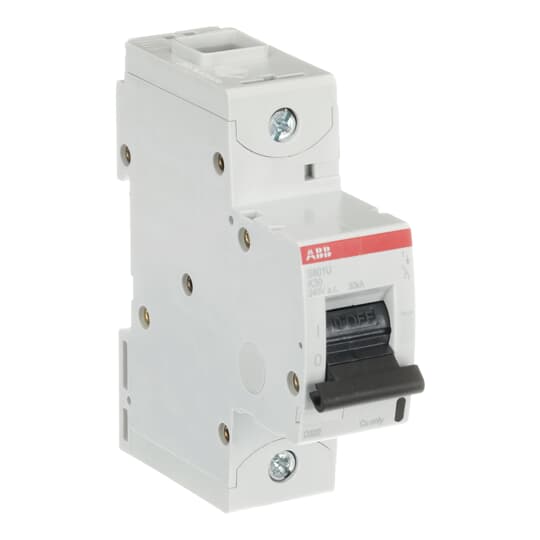

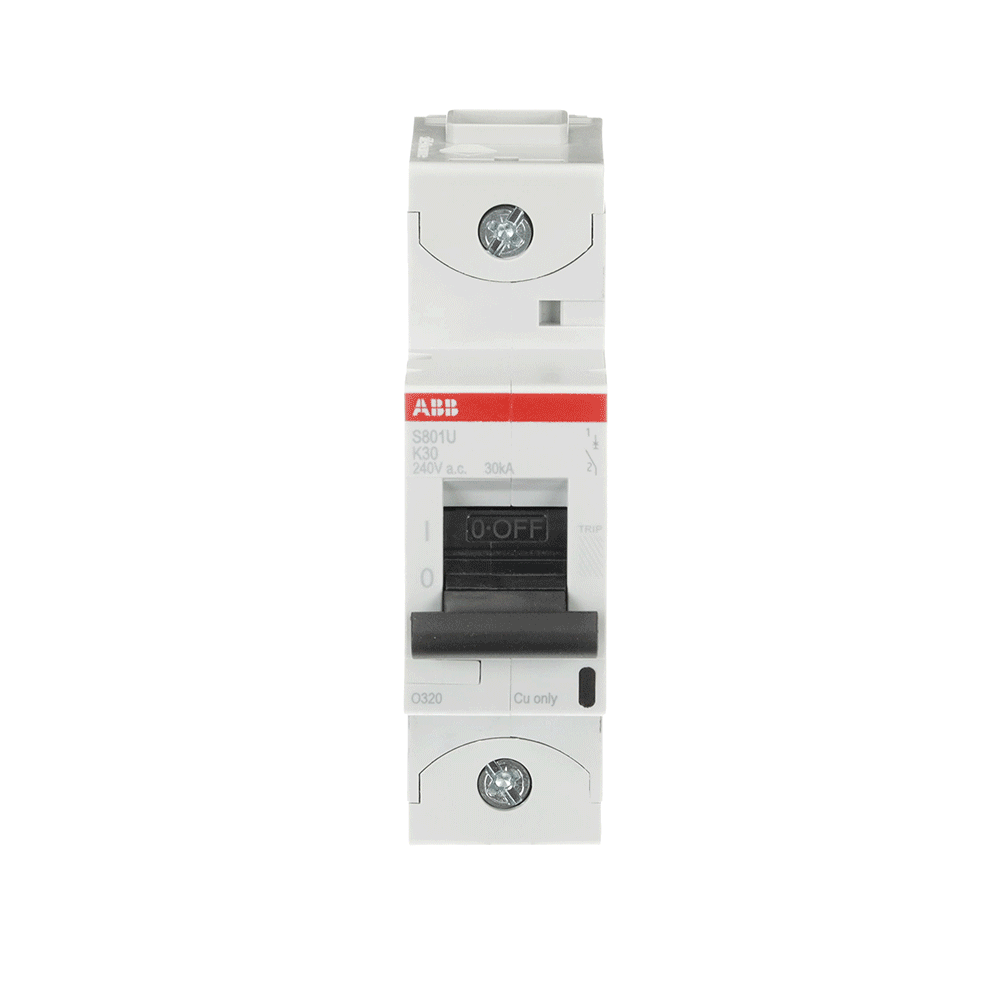

S801U-K30 High Performance MCB

Manufacturer's No: S801UK30     Manufacturer: ABB
S801U-K30 High Performance MCB

Availability On Request

£103.14
  • Type: Miniature Circuit Breaker (MCB)
  • Model: S801U-K30
  • Configuration: 1 Pole
  • Characteristic: K
  • Current Rating: 30A
  • Breaking Capacity: 30kA
  • Voltage Rating: 240/415VAC
  • High Performance Circuit Breaker (HPCB)


Product

Manufacturer Material ID -
S801UK30
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
25 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
30 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
2.8 Watt
Rated current -
30 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
690 Volt
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
30 kiloampere
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
K
Voltage type -
Other
Width in number of modular spacings -
1.5
ABB

Availability On Request

£103.14
