2CCP247212R0001

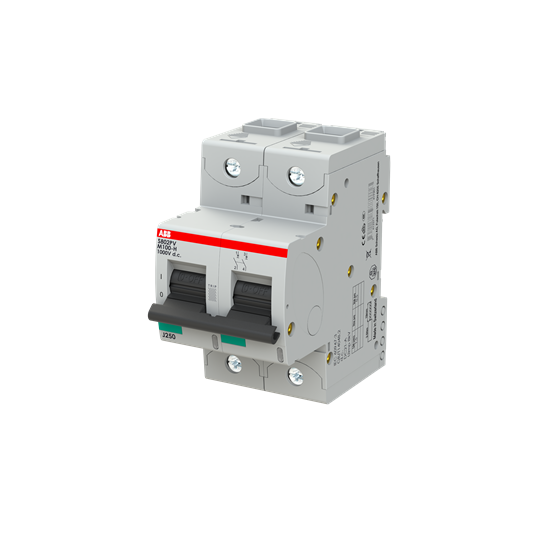

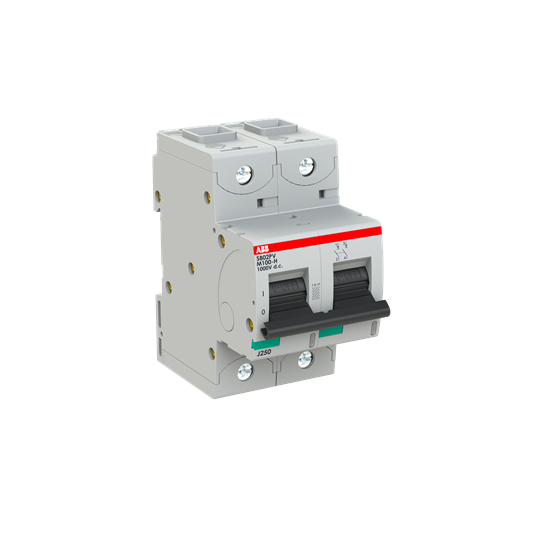

S802PV-M100-H High Performance MCB

Manufacturer's No: S802PV-M100-H     Manufacturer: ABB
S802PV-M100-H High Performance MCB

Availability On Request

£344.30
  • Model: S802PV-M100-H
  • Type: 2-pole polarized disconnector for photovoltaics
  • Maximum Current: 100A
  • Rated Operational Voltage: 1000V DC
  • Width: 54mm
  • Rated Short-term Withstand Current (Icw): 1.5kA
  • Compliance: IEC/EN 60947-3
  • Worldwide approvals
  • Extensive range of accessories available


Product

Manufacturer Material ID -
S802PV-M100-H
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Number of auxiliary contacts as change-over contact -
-
Rated operation power at AC-23, 400 V -
- Kilowatt
Rated permanent current at AC-21, 400 V -
- Ampere
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Rated operating voltage -
800 Volt
Degree of protection (IP), front side -
IP20
Type of electrical connection of main circuit -
Flat plug-in connection
Type of control element -
Toggle
Max. rated operation voltage Ue AC -
0 Volt
Device construction -
Complete device in housing
Colour control element -
Black
Depth -
82.5 Millimetre
Height -
95 Millimetre
Number of poles -
2
Number of switches -
8500
Rated permanent current Iu -
100 Ampere
Rated short-time withstand current lcw -
1.5 kiloampere
Suitable for distribution board installation -
Suitable for front mounting centre -
Suitable for intermediate mounting -
Version as main switch -
Voltage release optional -
Width -
54 Millimetre
Width in number of modular spacings -
3
