2CCS862001R0061

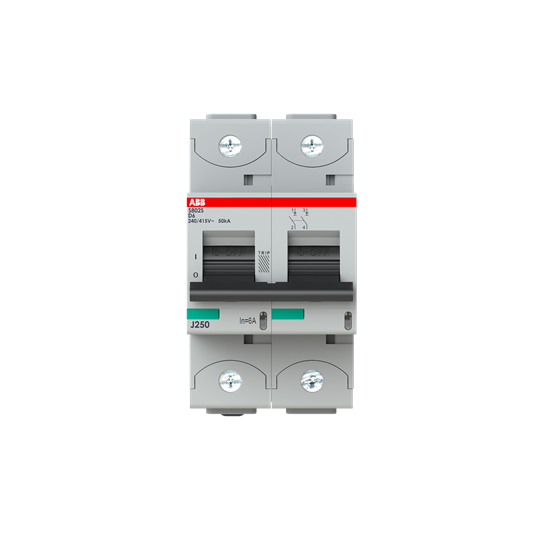

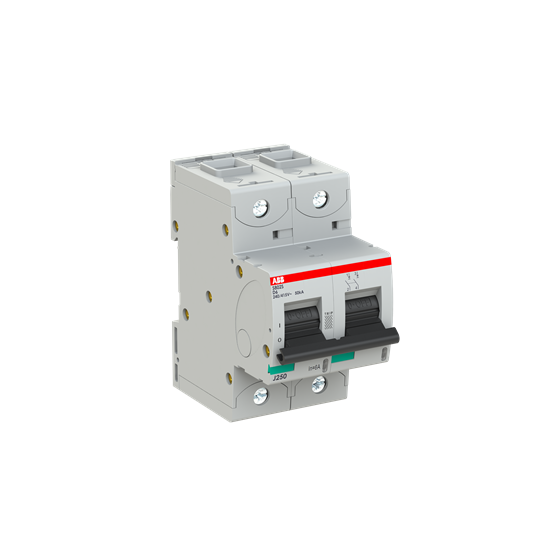

S802S-D6 High Performance MCB

Manufacturer's No: S802S-D6     Manufacturer: ABB
S802S-D6 High Performance MCB

Availability On Request

£197.93
  • 2-pole High Performance MCB
  • D-Characteristic
  • Rated current: 6 A
  • Maximum breaking capacity: 50 kA at 240/415V
  • Voltage range: up to 400/690V, suitable for DC
  • Thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Complies with IEC/EN 60947-2 for industrial applications
  • Worldwide approvals
  • Fast arc extinction for enhanced application security

Read more

  • Extensive range of accessories available


Product

Manufacturer Material ID -
S802S-D6
Net Weight -
0.51kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP2X
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
25 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
4
Pollution degree -
3
Power loss -
3.4 Watt
Rated current -
6 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
690 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
30 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
50 kiloampere
Rated voltage -
400 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
D
Voltage type -
Other
Width in number of modular spacings -
3
ABB

Availability On Request

£197.93
