2CCS883001R0825

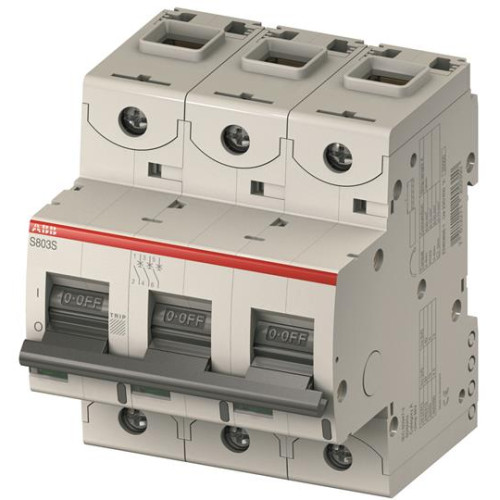

S803C-B100 High Performance MCB

Manufacturer's No: S803C-B100     Manufacturer: ABB
S803C-B100 High Performance MCB

Availability Back Order

POA
  • 3-pole High Performance Circuit breaker
  • B-characteristic
  • Rated current: 100 A
  • Maximum breaking capacity: 25kA at 240/415V
  • Voltage range: up to 254/440V, suitable for DC
  • Thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Complies with IEC/EN 60898-1 and IEC/EN 60947-2
  • Suitable for industrial applications
  • Global approvals

Read more

  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S803C-B100
Net Weight -
0.74kg

Additional Product Information

Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Voltage type -
AC/DC
Recess depth -
82.5 Millimetre
Rated current -
100 Ampere
Rated voltage -
400 Volt
Frequency -
50 Hertz
Tripping characteristic (type/curve) -
B
Rated insulation voltage Ui -
500 Volt
Current limiting class -
3
Over voltage category -
4
Pollution degree -
3
Width in number of modular spacings -
4.5
Degree of protection (IP rating) -
IP20
Number of protected poles -
3
Connectable conductor cross section solid-core -
0 Square millimetre
Connectable conductor cross section multi-wired -
0 Square millimetre
Ambient temperature during operating -
-25 Degrees celsius
Additional equipment possible -
Number of poles (total) -
3
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
15 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
25 kiloampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
