2CCS863001R1825

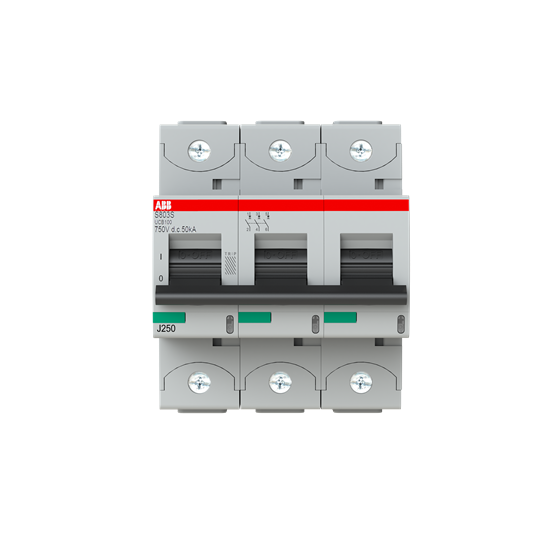

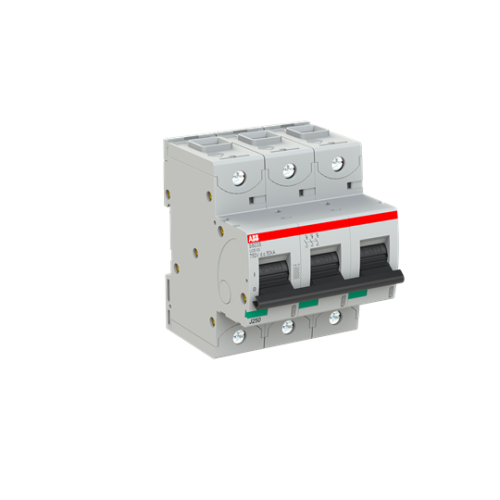

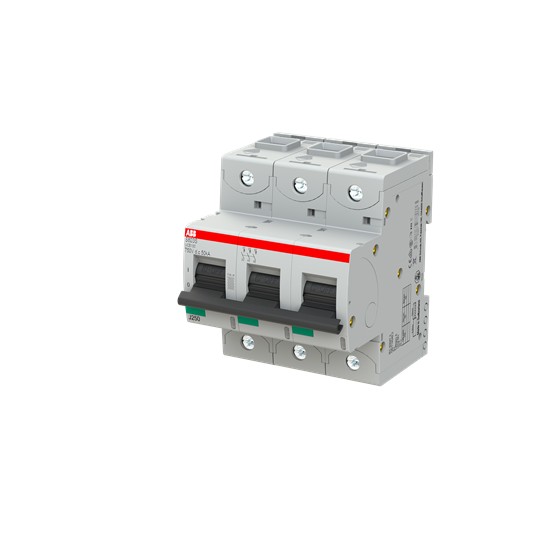

S803S-UCB100 High Performance MCB

Manufacturer's No: S803S-UCB100     Manufacturer: ABB
S803S-UCB100 High Performance MCB

Availability Back Order

£462.59
  • Type: Miniature Circuit Breaker (MCB)
  • Model: S803S-UCB100
  • Poles: 3
  • Characteristic: B
  • Current Rating: 100A
  • Breaking Capacity: 50kA
  • Voltage: 250VDC


Product

Manufacturer Material ID -
S803S-UCB100
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Rated voltage -
750 Volt
Release characteristic -
B
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
50 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
50 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
2
Power loss -
24.9 Watt
Rated current -
100 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
4.5
ABB

Availability Back Order

£462.59
