2CCS814001R0634

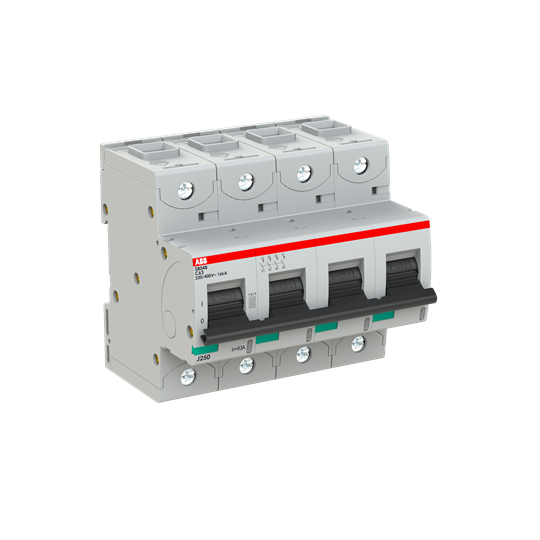

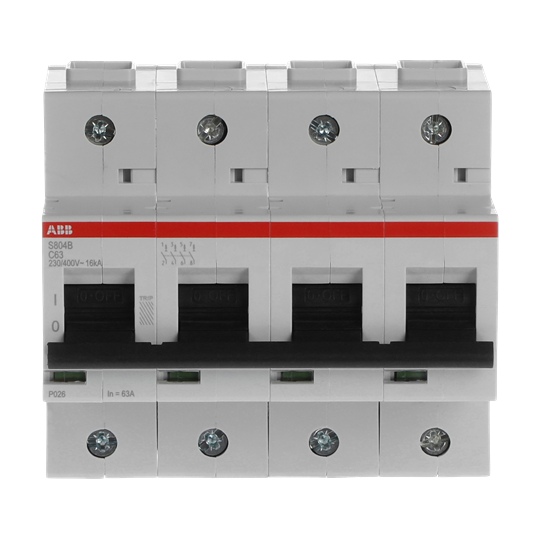

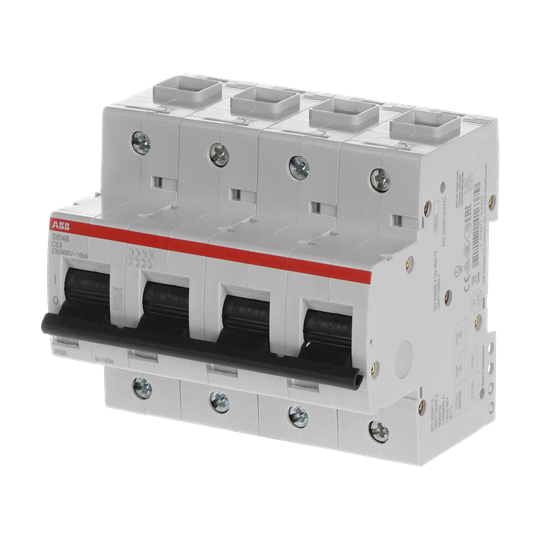

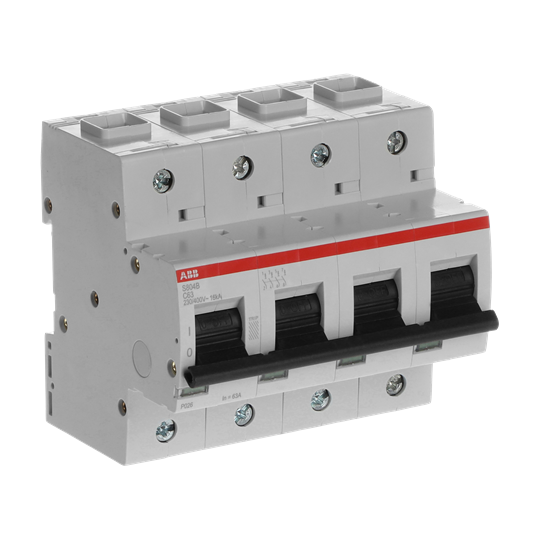

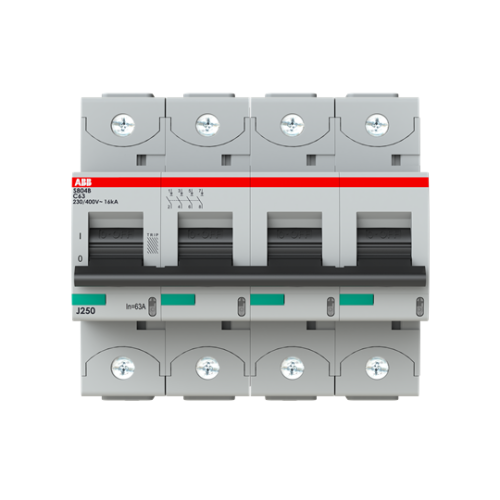

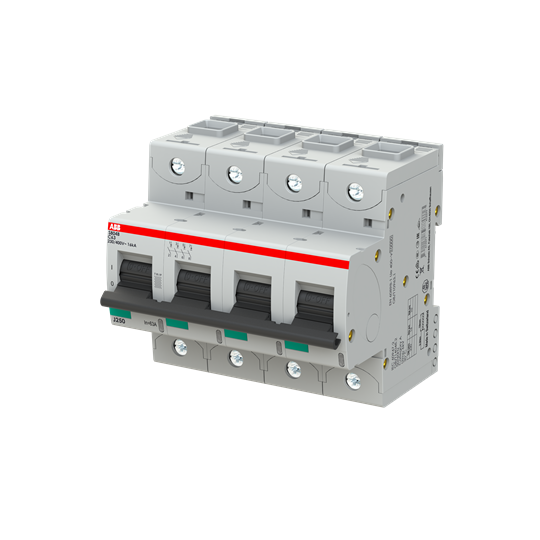

S804B-C63 High Performance MCB

Manufacturer's No: S804B-C63     Manufacturer: ABB

Availability Back Order

£244.95
  • 4-pole High Performance MCB
  • C-characteristic
  • Rated current: 63 A
  • Maximum breaking capacity: 16kA at 230/400V
  • Voltage compatibility: up to 230/400V
  • Thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Complies with IEC/EN 60947-2 and EN 60898-1
  • Suitable for residential, commercial, and industrial applications
  • Wide range of accessories available

Read more

  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S804B-C63
Net Weight -
0.98kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
16 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
3
Pollution degree -
3
Power loss -
25.6 Watt
Rated current -
63 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
16 kiloampere
Rated voltage -
400 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
6
