2CCS884001R0467

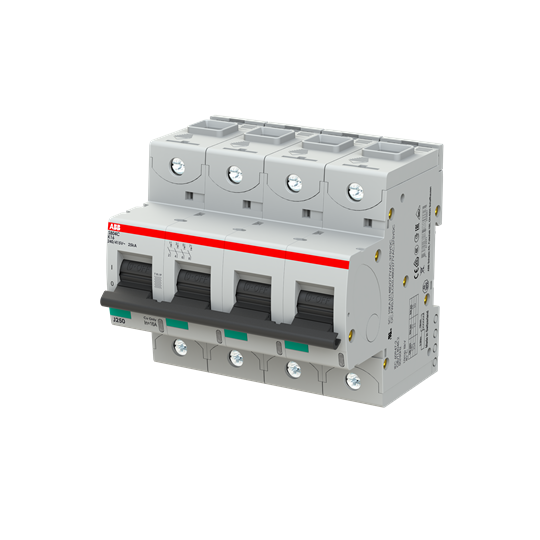

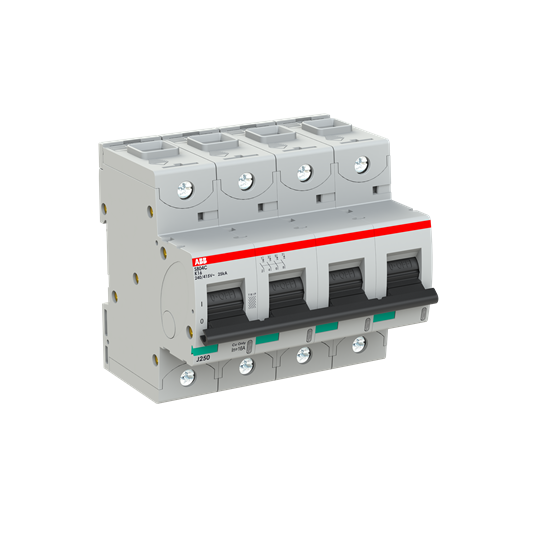

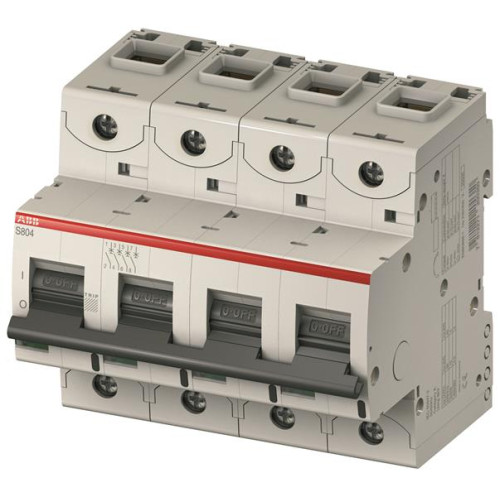

S804C-K16 High Performance MCB

Manufacturer's No: S804C-K16     Manufacturer: ABB
S804C-K16 High Performance MCB

Availability On Request

£245.27
  • 4-pole High Performance MCB with K-Characteristic
  • Rated current: 16 A
  • Maximum breaking capacity: 25kA at 240/415V
  • Voltage range: Up to 254/440V and suitable for DC
  • Two tripping mechanisms: Thermal for overload protection, Electromechanic for short circuit protection
  • Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards
  • Suitable for residential, commercial, and industrial applications
  • Worldwide approvals for global use
  • Fast arc extinction for enhanced application security
  • Cage terminal for easy installation

Read more

  • Extensive range of accessories available for added convenience


Product

Manufacturer Material ID -
S804C-K16
Net Weight -
0.98kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
K
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
25 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
4
Pollution degree -
3
Power loss -
12.4 Watt
Rated current -
16 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
15 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
25 kiloampere
Rated voltage -
400 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
K
Voltage type -
Other
Width in number of modular spacings -
6
ABB

Availability On Request

£245.27
