2CCF019915R0001

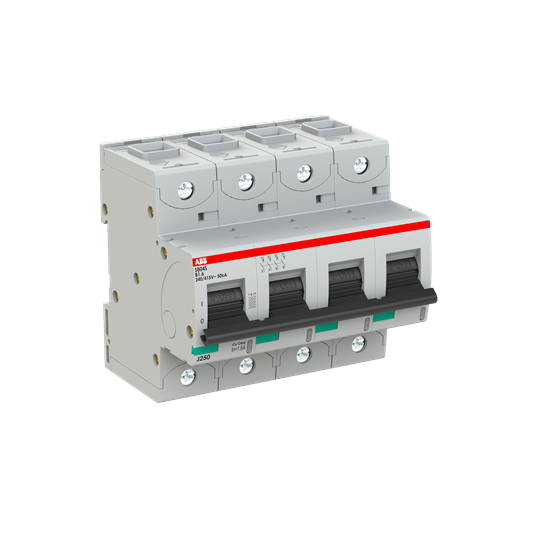

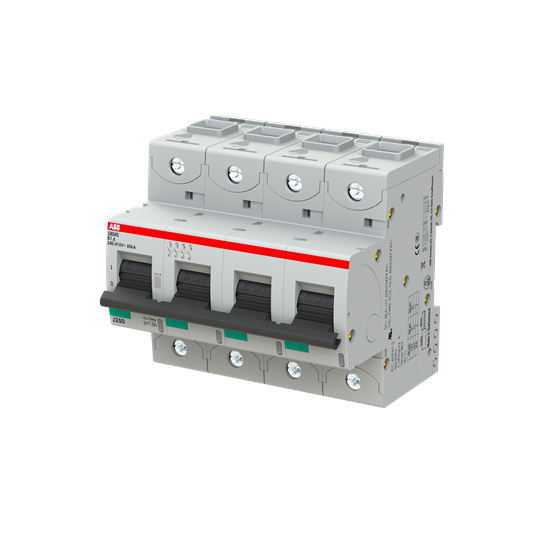

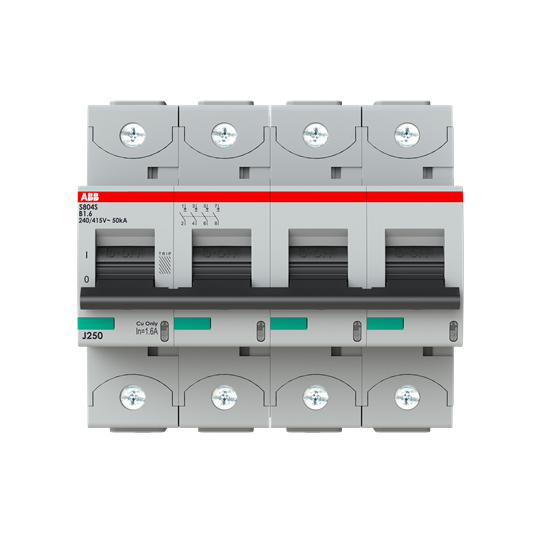

S804S-B1.6 High Performance MCB

Manufacturer's No: S804S-B1.6     Manufacturer: ABB
S804S-B1.6 High Performance MCB

Availability Back Order

£343.06
  • Model: S804S-B1.6
  • Type: High Performance MCB
  • Poles: 4
  • Characteristic: B
  • Current Rating: 1.6A
  • Breaking Capacity: 6 kA
  • Voltage: 400/690 VAC
  • Type: High Performance Circuit Breaker (HPCB)


Product

Manufacturer Material ID -
S804S-B1.6
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Flush-mounted installation -
Frequency -
50 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
4
Pollution degree -
3
Power loss -
11.6 Watt
Rated current -
1.6 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
690 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
50 kiloampere
Rated voltage -
400 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
6
ABB

Availability Back Order

£343.06
