2CDG110079R0011

SD/S2.16.1 Switch-/Dim Actuator, 2-fold, 16 A, MDRC

Manufacturer's No: SD/S2.16.1     Manufacturer: ABB

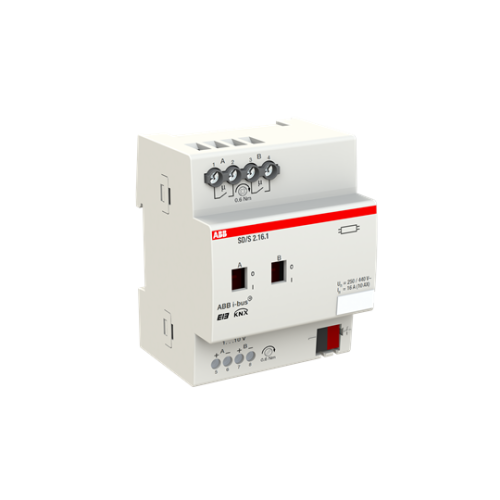

SD/S2.16.1 Switch-/Dim Actuator, 2-fold, 16 A, MDRC

Availability On Request

£341.88
  • Product: SD/S2.16.1 Switch-/Dim Actuator
  • Type: 2-fold
  • Max Current: 16 A
  • Mounting: MDRC
  • Function: Switching and dimming of 2, 4, or 8 independent groups of luminaries with electrical ballasts
  • Control: 1-10V control inputs
  • Operation: Can be controlled via ABB i-bus® or manually
  • Relay: Potential free relay per channel for on/off switching
  • Operation: Manual and visual included
  • Power Supply: Not required


Product

Manufacturer Material ID -
SD/S2.16.1
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Degree of protection (IP) -
IP20
Bus system KNX -
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Local operation/hand operation -
Max. control current -
100 Milliampere
Minimum depth of back box -
64.5 Millimetre
Model -
Dimming actuator
Mounting method -
DRA (DIN-rail adapter)
Number of outputs -
2
Other bus systems -
None
Output power -
2300 Watt
Type of load -
Universal
Voltage -
110 Volt
Width in number of modular spacings -
4
ABB

Availability On Request

£341.88
