2CDG110081R0011

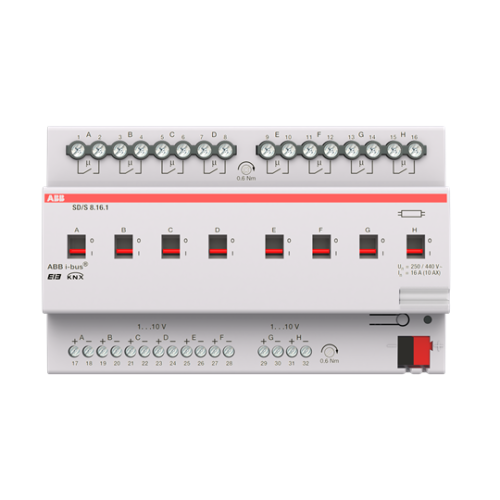

SD/S8.16.1 Switch-/Dim Actuator, 8-fold, 16 A, MDRC

Manufacturer's No: SD/S8.16.1     Manufacturer: ABB
SD/S8.16.1 Switch-/Dim Actuator, 8-fold, 16 A, MDRC

Availability On Request

£925.87
  • Product: SD/S8.16.1 Switch-/Dim Actuator
  • Type: 8-fold, 16 A
  • Compatibility: MDRC Devices
  • Function: Switching and dimming of 2, 4, or 8 independent groups of luminaries with electrical ballasts
  • Control: 1-10V control inputs
  • Operation: Can switch on/off a potential free relay per channel via ABB i-bus® or manually
  • Features: Manual and visual operation included
  • Power Supply: Not required


Product

Manufacturer Material ID -
SD/S8.16.1
Net Weight -
0.51kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Degree of protection (IP) -
IP20
Bus system KNX -
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Local operation/hand operation -
Max. control current -
100 Milliampere
Minimum depth of back box -
64.5 Millimetre
Model -
Dimming actuator
Mounting method -
DRA (DIN-rail adapter)
Number of outputs -
8
Other bus systems -
None
Output power -
2300 Watt
Type of load -
Universal
Voltage -
110 Volt
Width in number of modular spacings -
8
ABB

Availability On Request

£925.87
