2CKA006200A0112

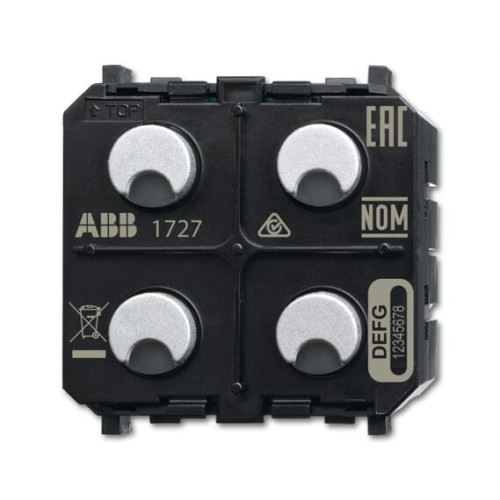

SDA-F-2.1.PB.1-WL WL-Sens/ Dimact. 2/1, 44

Manufacturer's No: SDA-F-2.1.PB.1-WL     Manufacturer: ABB
SDA-F-2.1.PB.1-WL WL-Sens/ Dimact. 2/1, 44

Availability On Request

£174.45
  • SDA-F-2.1.PB.1-WL WL-Sens/ Dimact. 2/1, 44 for dimming 230 V~ loads wirelessly
  • Integrated universal dimming actuator for controlling LEDs, incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps, and dimmable energy-saving halogen lamps
  • Compatible with dimmable Retrofit-LEDs (LEDi)
  • Left sensor channel pre-configured for dimming function without prior programming
  • Web interface for configuration changes (groups, scenes, etc.)
  • Right sensor channel for programming additional functions (groups, scenes, etc.)
  • Compatible with 2-gang rocker models: 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx, and 6234-2x-xxx
  • 2-wire connection (neutral conductor not required), 3-wire connection technology optional for improved load behavior
  • 230 V extension unit input for dimming and switching
  • Includes fixing claws for installation


Product

Manufacturer Material ID -
SDA-F-2.1.PB.1-WL
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Max. control current -
- Milliampere
Width in number of modular spacings -
-
Type of load -
Universal and LED Retrofit
Substation input -
Degree of protection (IP) -
IP20
Auxiliary input -
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Local operation/hand operation -
Minimum depth of back box -
32 Millimetre
Model -
Dimming actuator
Mounting method -
Flush mounted
Number of outputs -
1
Other bus systems -
Other
Output power -
20 Watt
Radio frequent bidirectional -
Voltage -
230 Volt
ABB

Availability On Request

£174.45
