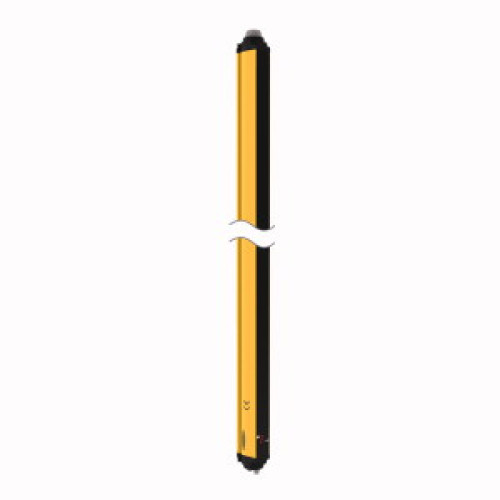

SGS GRIDS, Safety, IP65, 24 V dc +/- 20%, Active & Passive with Muting

Manufacturer's No: SGSMA3-400Q12     Manufacturer: Turck Banner
SGS GRIDS, Safety, IP65, 24 V dc +/- 20%, Active & Passive with Muting

Availability Available to order

£1,043.58
  • Safety Light Curtain with Active Transceiver and Muting Function
  • 3 Beams with Beam Spacing of 380 mm
  • Max. Range of 8000 mm with Resolution of 400 mm
  • Operating Voltage: 19.2 to 28.8 VDC
  • Active Emitter/Receiver Element with 3 Light Beams
  • M12 Male Connector with 12-pin and 5-pin (for muting sensor)
  • Scan Codes for automatic/manual start/restart
  • Integrated Muting and EDM features
  • Requires Passive Reflector Element SGSB3-400 for operation
  • Range: 8 m with Scan Field of 800 mm

Read more

  • Operating Voltage: 24 VDC ±20%
  • SIL 3 (IEC 61508) and PL e (ISO 13849-1) Compliance


Product

Manufacturer Material ID -
SGSMA3-400Q12
Net Weight -
4.42kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
43211902

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
906.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Reaction time -
12 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability Available to order

£1,043.58
