803225 {B}

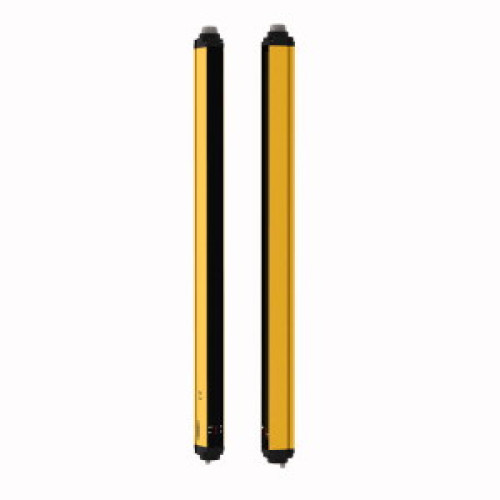

SGS Safety Grid System, Emitter/Receiver Pair; Beams: 2; Resolution

Manufacturer's No: SGSMP2-500Q128     Manufacturer: Turck Banner
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 2; Resolution

Availability Available to order

£1,370.87
  • Safety Light Curtain with Muting Function
  • Emitter and Receiver Pair
  • 2 Beams with 500 mm Beam Spacing
  • Max. Range: 30,000 mm
  • Resolution: 500 mm
  • Operating Voltage: 19.2 to 28.8 VDC
  • Scan Field: 500 mm
  • Range: 30 m
  • Receiver: M12 Male Connector (12-pin and 5-pin for muting sensor)
  • Emitter: M12 Male Connector (8-pin)

Read more

  • Scan Codes: Automatic/Manual Start/Restart
  • Integrated Muting and EDM
  • SIL 3 (IEC 61508), PL e (ISO 13849-1) Compliant


Product

Manufacturer Material ID -
SGSMP2-500Q128
Net Weight -
3.28kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
43211902

Technical Specification

Ambient temperature -
0 Degrees celsius
Height -
606.35 Millimetre
Length -
56.9 Millimetre
Max. output current at protected output -
500 Milliampere
Number of beams -
2
Reaction time -
12 Millisecond
Wavelength of the sensor -
950 Nanometre
Width -
52 Millimetre
Turck Banner

Availability Available to order

£1,370.87
