551391

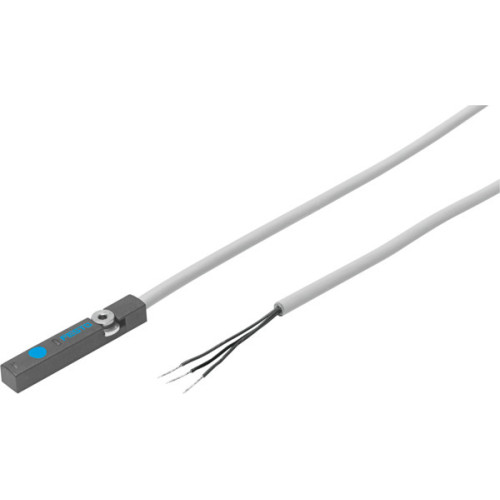

SIES-8M-PO-24V-K-7,5-OE Proximity sensor

Manufacturer's No: SIES-8M-PO-24V-K-7,5-OE     Manufacturer: Festo
SIES-8M-PO-24V-K-7,5-OE Proximity sensor

Availability On Request

£67.64
  • Model: SIES-8M-PO-24V-K-7,5-OE
  • Proximity Sensor with special design for T-slot
  • Operating Voltage: 24 V DC
  • Sensing Range: 7.5 m
  • Suitable for energy chains
  • Measuring Principle: Inductive
  • Rated Operating Distance: 1.5 mm
  • Switching Output: PNP, N/C contact
  • LED switching status indicator
  • Conforms to standard: EN 60947-5-2

Read more

  • Approval: RCM trademark, c UL us listed (OL), CE mark
  • Ambient Temperature: -25°C to 70°C
  • Repetition Accuracy: <= 0.05 mm
  • Max. Switching Frequency: 4500 Hz
  • Max. Output Current: 150 mA
  • Max. Switching Capacity: 4.5 W
  • Voltage Drop: 2 V
  • Integrated inductive protective circuit
  • Operational Voltage Range: 10 V to 30 V
  • Degree of Protection: IP65, IP67
  • Insulation Voltage: 50 V
  • Corrosion Resistance Class: 3 (high corrosion stress)
  • Cleanroom Class: Class 4 according to ISO 14644-1
  • Pollution Degree: 3
  • Material: PA, PUR, High-alloy stainless steel
  • Cable Length: 7.5 m
  • Cable Sheath Color: Grey
  • Electrical Connection: Cable with open end, 3 cores
  • Mounting: Flush with T-slot, screw-clamped, insertable from above
  • Tightening Torque: 0.6 Nm
  • Switching Status Indication: Yellow LED
  • Immunity to Surge: 0.8 kV
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Suitable for Li-ion battery production, excluding metals with more than 1% copper, zinc, or nickel


Product

Manufacturer Material ID -
SIES-8M-PO-24V-K-7,5-OE
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
LK
UNSPSC -
41111926
Festo

Availability On Request

£67.64
