3060381

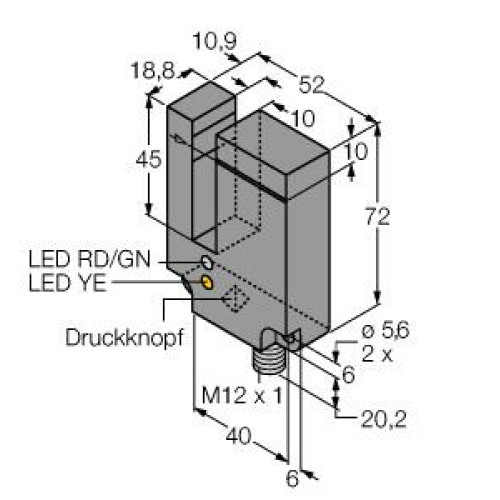

SLE10Series: Teach Mode Slot Sensor, Slot width: 10, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Manufacturer's No: SLE10B6VQ     Manufacturer: Turck Banner
SLE10Series: Teach Mode Slot Sensor, Slot width: 10, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Availability On Request

£160.60
  • Photoelectric Sensor: Bifurcated Retroreflective type
  • Operating Voltage: 10-30 VDC
  • Max. Range: 10 mm
  • Male M12 × 1, 5-pin connector
  • Protection Class: IP67
  • Slot Width: 10 mm
  • Sensitivity adjusted via teach button
  • Switching Output: Bipolar
  • Light or dark operation


Product

Manufacturer Material ID -
SLE10B6VQ
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Fork width -
10 Millimetre
Height of sensor -
52 Millimetre
Housing material -
Plastic
Length of sensor -
72 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
10 Millimetre
Rated switching distance -
10 Millimetre
Reaction time -
0.5 Millisecond
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
18.8 Millimetre
Turck Banner

Availability On Request

£160.60
