3089667

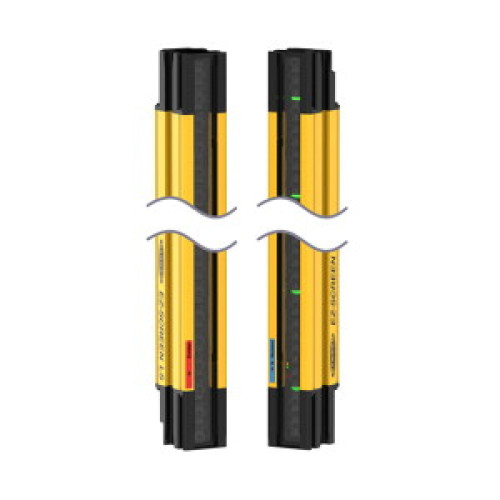

EZSCREEN LS, Pair; Resolution: 14 mm; Range: 12 m 40 ft; Defined Area: 350 mm 13.8 in.; Housing: Yellow; Connection: M12 8pin 300

Manufacturer's No: SLLP14-350P88
EZSCREEN LS, Pair; Resolution: 14 mm; Range: 12 m 40 ft; Defined Area: 350 mm 13.8 in.; Housing: Yellow; Connection: M12 8pin 300 mm Pigtail QD; 2x OSSD, EDM, Fault Out amp; Fault Reset;

Availability Back Order

£1,893.50
  • Product: EZSCREEN LS, Pair
  • Resolution: 14 mm
  • Range: 12 m (40 ft)
  • Defined Area: 350 mm (13.8 in)
  • Housing Color: Yellow
  • Connection: M12 8-pin 300 mm Pigtail QD
  • Features: 2x OSSD, EDM, Fault Out, Fault Reset


Product

Manufacturer Material ID -
SLLP14-350P88
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Fade-out possible -

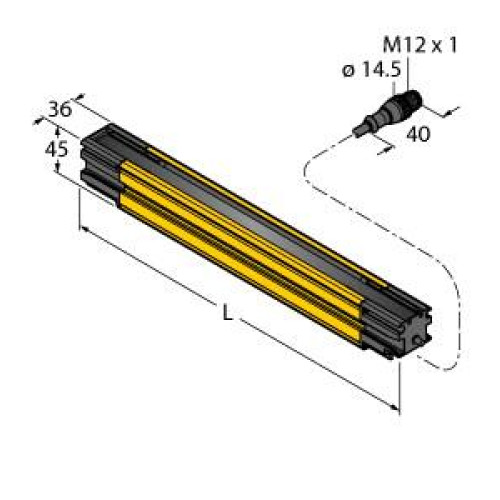

Height of sensor -
355 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
13.3 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
350 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
With restart blockage -


Availability Back Order

£1,893.50
