3074966

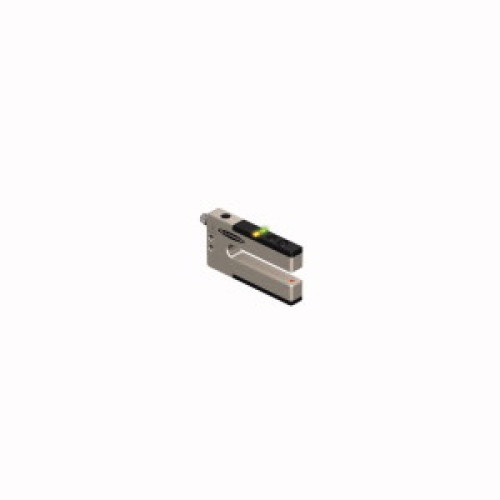

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 10, Input 10-30 V dc, Output: PNP, 3-pin M8 Integra

Manufacturer's No: SLM10P6Q     Manufacturer: Turck Banner
SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 10, Input 10-30 V dc, Output: PNP, 3-pin M8 Integral QD

Availability On Request

£179.66
  • Type: Photoelectric Sensor, Bifurcated Retroreflective
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 10 mm
  • Connector Type: Male, M8 x 1
  • Protection Class: IP67
  • Sensitivity Adjustment: Via Potentiometer
  • Output: PNP Switching
  • Operation Mode: Light or Dark


Product

Manufacturer Material ID -
SLM10P6Q
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

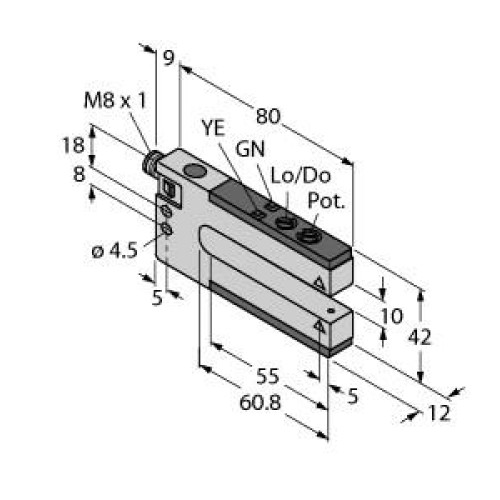

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Fork width -
10 Millimetre
Height of sensor -
42 Millimetre
Housing material -
Metal
Length of sensor -
80 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
10 Millimetre
Rated switching distance -
10 Millimetre
Reaction time -
0.5 Millisecond
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Width sensor -
12 Millimetre
