3074982

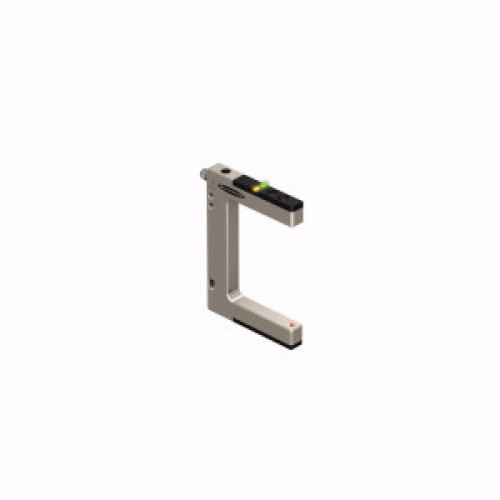

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 80, Input 10-30 V dc, Output: PNP, 3-pin M8 Integra

Manufacturer's No: SLM80P6Q     Manufacturer: Turck Banner
SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor, Slot Width: 80, Input 10-30 V dc, Output: PNP, 3-pin M8 Integral QD

Availability On Request

POA
  • Photoelectric Sensor
  • Bifurcated Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 80 mm
  • Male, M8 x 1
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • PNP Switching Output
  • Light or Dark Operation


Product

Manufacturer Material ID -
SLM80P6Q
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67

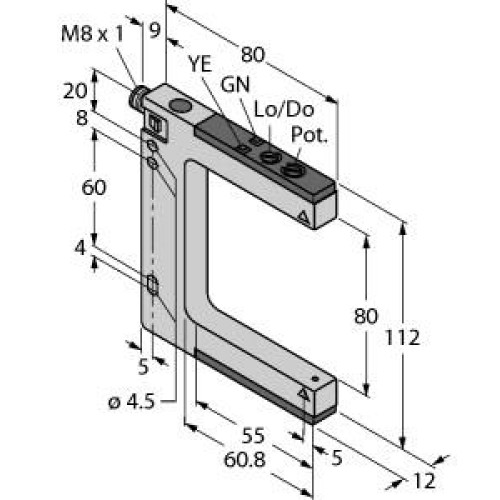

Fork width -
80 Millimetre
Height of sensor -
112 Millimetre
Housing material -
Metal
Length of sensor -
80 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
80 Millimetre
Rated switching distance -
80 Millimetre
Reaction time -
0.5 Millisecond
Switching frequency -
1000 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

POA
