3083593

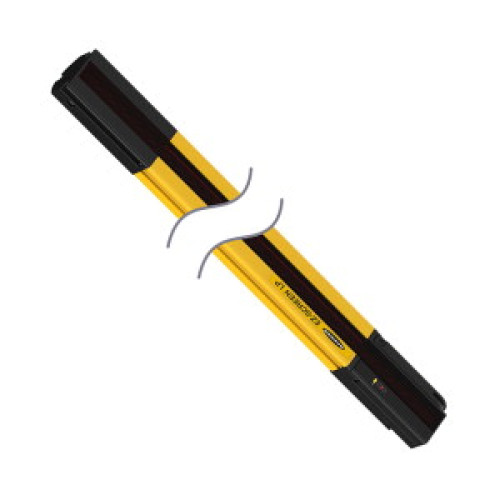

Safety Light Curtain, Emitter, Cascadable

Manufacturer's No: SLPCE14-1110P8     Manufacturer: Turck Banner
Safety Light Curtain, Emitter, Cascadable

Availability On Request

POA
  • Safety Light Curtain Emitter
  • Operating Voltage: 20-28 VDC
  • Max. Range: 7000 mm
  • Cable Length: 300 m, M12 x 1 connector
  • Protection Class: IP65
  • Resolution: 14 mm
  • Scan Field: 1110 mm (L1)
  • Personnel Safety Category: 4
  • Safety Standards: PL e acc. to EN ISO 13849-1:2008, Type 4 acc. to IEC 61496-1,2, SIL 3 to IEC 61508
  • Cascadable with DEE2R-8 connection

Read more

  • Flat housing design without blind zone
  • Scan code adjustable via DIP switch


Product

Manufacturer Material ID -
SLPCE14-1110P8
Net Weight -
1.72kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1108 Millimetre
Length of sensor -
26 Millimetre
Reaction time -
28.5 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
1110 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Wavelength of the sensor -
850 Nanometre
Width sensor -
28 Millimetre
Turck Banner
