3083564

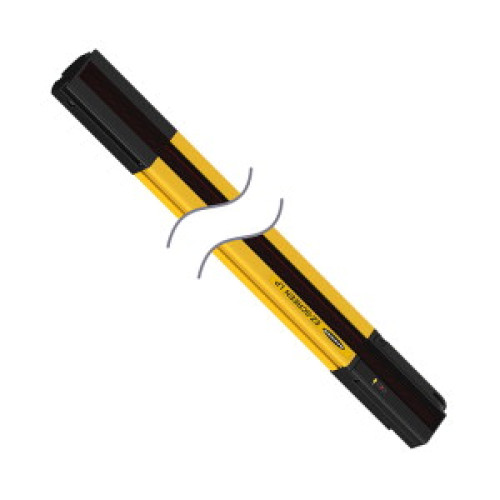

SLPE25-270P8 EZ-SCREEN Low Profile Emitter, Resolution: 25, Response (Tr): 8 ms, Beams: 14, Range: 0.1-7 m (4 in - 23 ft), Height:

Manufacturer's No: SLPE25-270P8     Manufacturer: Turck Banner
SLPE25-270P8 EZ-SCREEN Low Profile Emitter, Resolution: 25, Response (Tr): 8 ms, Beams: 14, Range: 0.1-7 m (4 in - 23 ft), Height: 270 (10.6 in), 300 (1 ft) 8-pin M12 Pigtail QD

Availability On Request

£529.90
  • Safety Light Curtain Emitter
  • Operating Voltage: 20-28 VDC
  • Max. Range: 7000 mm
  • Cable Length: 0.3 m, Cable with M12 x 1 connector, 300 mm, 8-pin
  • Protection Class: IP65
  • Flat housing design without blind zone
  • Scan Code adjustable via DIP switch
  • Resolution: 25 mm
  • Scan Field: 270 mm (L1)
  • Personnel Safety Category: 4, PL e according to EN ISO 13849-1:2008

Read more

  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLPE25-270P8
Net Weight -
0.99kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
270 Millimetre
Length of sensor -
26 Millimetre
Reaction time -
8 Millisecond
Resolution of the light curtain -
25 Millimetre
Safety field height -
270 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Wavelength of the sensor -
850 Nanometre
Width sensor -
28 Millimetre
Turck Banner

Availability On Request

£529.90
