3083725

SLPP14-410P88 EZ-SCREEN Low Profile Pair, Resolution: 14, Response (Tr): 13.5 ms, Beams: 41, Range: 0.1-7 m (4 in - 23 ft), Height

Manufacturer's No: SLPP14-410P88     Manufacturer: Turck Banner

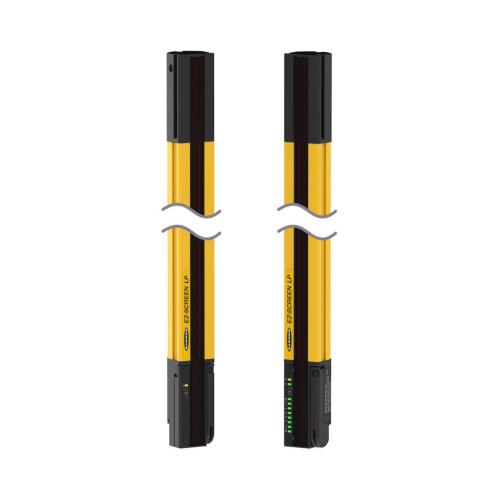

SLPP14-410P88 EZ-SCREEN Low Profile Pair, Resolution: 14, Response (Tr): 13.5 ms, Beams: 41, Range: 0.1-7 m (4 in - 23 ft), Height: 410 (16.1 in), 300 (1 ft) 8-pin M12 Pigtail QD

Availability Back Order

£2,089.65
  • Model: SLPP14-410P88 EZ-SCREEN Low Profile Pair
  • Resolution: 14 beams
  • Response Time: 13.5 ms
  • Number of Beams: 41
  • Range: 0.1-7 meters (4 inches - 23 feet)
  • Height: 410 mm (16.1 inches)
  • Connector: 8-pin M12 Pigtail QD


Product

Manufacturer Material ID -
SLPP14-410P88
Net Weight -
2.75kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Turck Banner
Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
410 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
13.5 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
410 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
850 Nanometre
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner

Availability Back Order

£2,089.65
