3083782

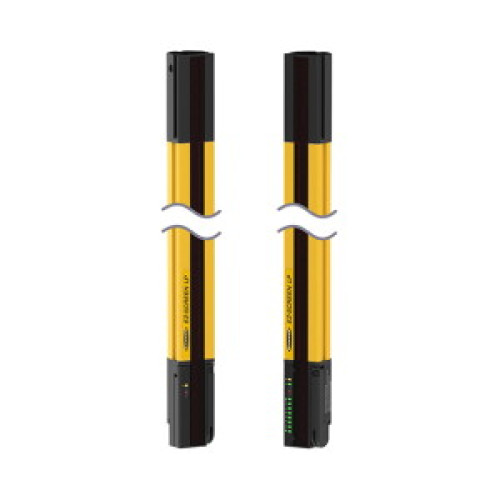

SLPP25-270 EZ-SCREEN Low Profile Pair, Resolution: 25, Response (Tr): 8 ms, Beams: 14, Range: 0.1-7 m (4 in - 23 ft), Height: 270

Manufacturer's No: SLPP25-270     Manufacturer: Turck Banner
SLPP25-270 EZ-SCREEN Low Profile Pair, Resolution: 25, Response (Tr): 8 ms, Beams: 14, Range: 0.1-7 m (4 in - 23 ft), Height: 270 (10.6 in), Integral RD

Availability On Request

£1,244.90
  • Safety Light Curtain
  • Emitter/Receiver Pair
  • Operating voltage: 20-28 VDC
  • Max. range: 7000 mm
  • Electrical connection: RDLP-8 with open end or DELPE-8 with M12 x 1 male connector, 8-pin
  • Protection class: IP65
  • Flat housing design without blind zone
  • Adjustments via DIP switch
  • Reducible resolution
  • Blanking function

Read more

  • Resolution: 25 mm
  • Scan field: 270 mm (L1)
  • Personnel safety category: 4
  • Performance Level: PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLPP25-270
Net Weight -
1.00kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
270 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
10.5 Millisecond
Resolution of the light curtain -
25 Millimetre
Safety field height -
270 Millimetre
Suitable for safety functions -
Type of electric connection -
Flat plug-in connection
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
850 Nanometre
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£1,244.90
