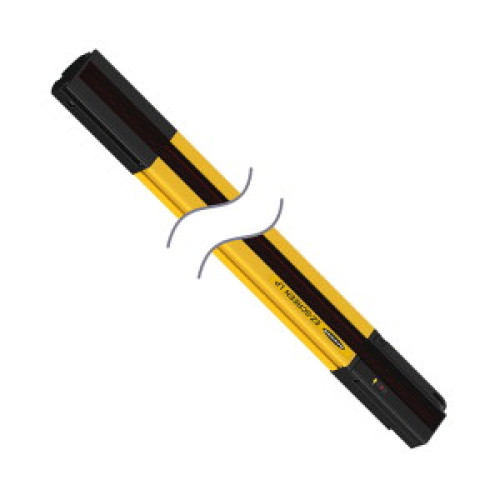

SLPR25-1110P8 EZ-SCREEN Low Profile Receiver, Resolution: 25, Response (Tr): 17 ms, Beams: 56, Range: 0.1-7 m (4 in - 23 ft), Heig

Manufacturer's No: SLPR25-1110P8     Manufacturer: Turck Banner
SLPR25-1110P8 EZ-SCREEN Low Profile Receiver, Resolution: 25, Response (Tr): 17 ms, Beams: 56, Range: 0.1-7 m (4 in - 23 ft), Height: 1110 (43.7 in), 300 (1 ft) 8-pin M12 Pigtail QD

Availability On Request

£1,979.86
  • Safety Light Curtain Receiver
  • Operating voltage: 20-28 VDC
  • Max. range: 7000 mm
  • Cable length: 0.3 m, with M12 × 1 connector
  • Protection class: IP65
  • Flat housing design without blind zone
  • Adjustments via DIP switch
  • Reducible resolution with blanking function
  • Resolution: 25 mm
  • Scan field: 1110 mm (L1)

Read more

  • Personnel safety category: 4
  • Performance Level: e (PL e) according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • Safety Integrity Level (SIL): 3 according to IEC 61508


Product

Manufacturer Material ID -
SLPR25-1110P8
Net Weight -
3.22kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1108 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
17 Millisecond
Resolution of the light curtain -
25 Millimetre
Safety field height -
1110 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£1,979.86
