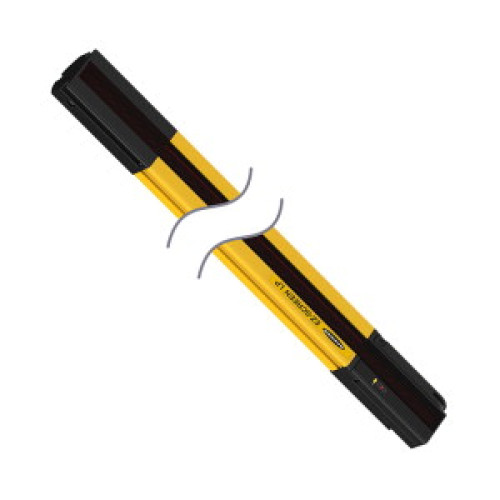

Safety Light Curtain, Receiver

Manufacturer's No: SLPR25-1390P8     Manufacturer: Turck Banner
Safety Light Curtain, Receiver

Availability On Request

POA
  • Safety Light Curtain Receiver
  • Operating Voltage: 20-28 VDC
  • Max. Range: 7000 mm
  • Cable Length: 0.3 m, M12 × 1 connector
  • Protection Class: IP65
  • Flat housing design without blind zone
  • Adjustments via DIP switch
  • Reducible resolution with blanking function
  • Resolution: 25 mm
  • Scan Field: 1390 mm (L1)

Read more

  • Personnel Safety Category: 4
  • Performance Level: PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • Safety Integrity Level (SIL): SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLPR25-1390P8
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1388 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
20 Millisecond
Resolution of the light curtain -
25 Millimetre
Safety field height -
1390 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
28 Millimetre
With restart blockage -
