3083578

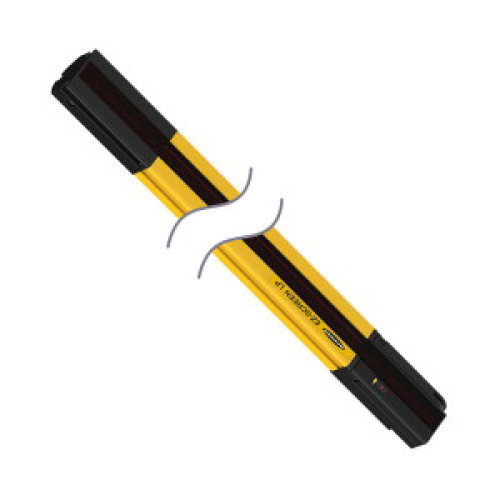

SLPR25-550P8 EZ-SCREEN Low Profile Receiver, Resolution: 25, Response (Tr): 11 ms, Beams: 28, Range: 0.1-7 m (4 in - 23 ft), Heigh

Manufacturer's No: SLPR25-550P8     Manufacturer: Turck Banner
SLPR25-550P8 EZ-SCREEN Low Profile Receiver, Resolution: 25, Response (Tr): 11 ms, Beams: 28, Range: 0.1-7 m (4 in - 23 ft), Height: 550 (21.7 in), 300 (1 ft) 8-pin M12 Pigtail QD

Availability On Request

£1,165.05
  • Safety Light Curtain Receiver
  • Operating Voltage: 20-28 VDC
  • Max. Range: 7000 mm
  • Cable Length: 0.3 m, with M12 × 1 connector
  • Protection Class: IP65
  • Flat housing design without blind zone
  • Adjustments via DIP switch
  • Reducible resolution with a resolution of 25 mm
  • Blanking function available
  • Scan Field: 550 mm (L1)

Read more

  • Personnel Safety Category: 4
  • Performance Level: PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLPR25-550P8
Net Weight -
1.55kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
549 Millimetre
Length of sensor -
26 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
11 Millisecond
Resolution of the light curtain -
25 Millimetre
Safety field height -
550 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
28 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£1,165.05
