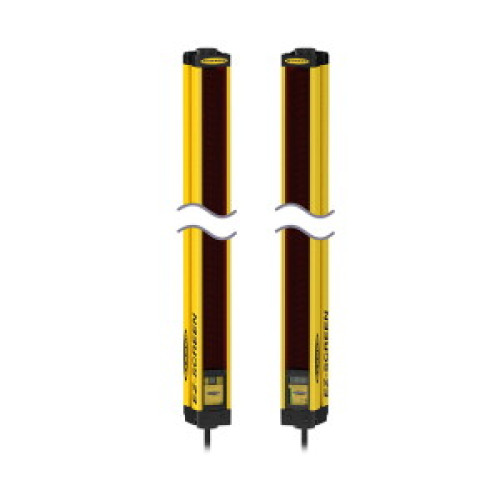

EZ-SCREEN Cascade Pair, Resolution: 14, Range: 6 m (20 ft), Defined Area: 1050 (41.3 in), Housing Length: 1120 (44.1 in), Connecti

Manufacturer's No: SLSCP14-1050Q88     Manufacturer: Turck Banner
EZ-SCREEN Cascade Pair, Resolution: 14, Range: 6 m (20 ft), Defined Area: 1050 (41.3 in), Housing Length: 1120 (44.1 in), Connection: 8-pin M12 Connectors, Emitter: No test Input

Availability On Request

£4,356.24
  • Light screen for machine safety applications
  • Cascadable emitter/receiver pair
  • Operating voltage: 20-28 VDC
  • Maximum range: 6000 mm
  • M12 x 1 male connector, 8-pin
  • Blanking function
  • Cascadable up to 4 modules
  • Protection class: IP65
  • Adjustments via DIP switch
  • Resolution: 14 mm

Read more

  • Scan field: 1050 mm
  • Includes two EZA-MBK-11 mounting brackets; devices with a length of 900 mm or more also include one EZA-MBK-12
  • Personnel safety category 4, PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, 2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLSCP14-1050Q88
Net Weight -
8.53kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -

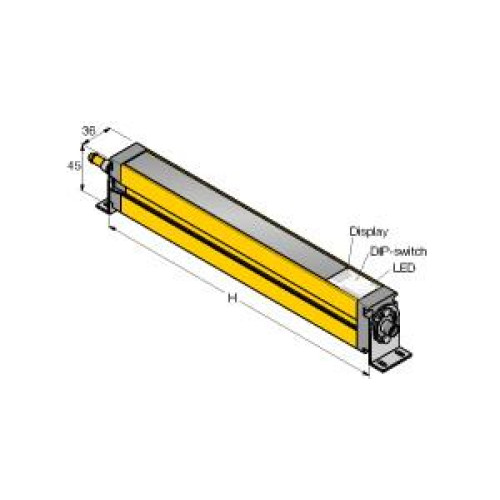

Height of sensor -
1120 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
36 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
1050 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
950 Nanometre
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner
