71242 {B}

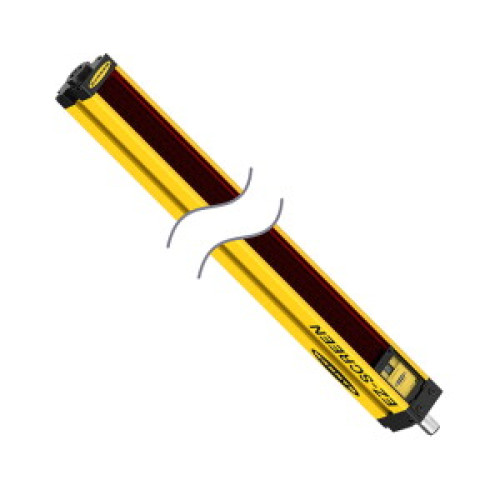

EZ-SCREEN Emitter, Resolution: 30, Range: 18 m (60 ft), Defined Area: 1050 (41.3 in), Housing Length: 1120 (44.1 in), Connection:

Manufacturer's No: SLSE30-1050Q5     Manufacturer: Turck Banner
EZ-SCREEN Emitter, Resolution: 30, Range: 18 m (60 ft), Defined Area: 1050 (41.3 in), Housing Length: 1120 (44.1 in), Connection: 5-pin M12 Connector, With Test Input

Availability Available to order

£1,460.29
  • Emitter with operating voltage range of 20 to 28 VDC
  • Maximum range of 18000 mm with a resolution of 30 mm
  • M12 × 1 male connector with 5-pin configuration
  • Protection class IP65 for durability in various environments
  • Scan field of 1050 mm for comprehensive coverage
  • Adjustments can be made via DIP switch for easy customization
  • Operating voltage of 24 VDC ± 15% for stable performance
  • Personnel safety category 4 and PL e according to EN ISO 13849-1:2008
  • Type 4 according to IEC 61496-1, -2 and SIL 3 to IEC 61508
  • Includes two EZA-MBK-11 mounting brackets; devices over 900 mm also include one EZA-MBK-12


Product

Manufacturer Material ID -
SLSE30-1050Q5
Net Weight -
3.95kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1120 Millimetre
Length of sensor -
45 Millimetre
Reaction time -
21 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
1050 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Wavelength of the sensor -
950 Nanometre
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability Available to order

£1,460.29
