3072378

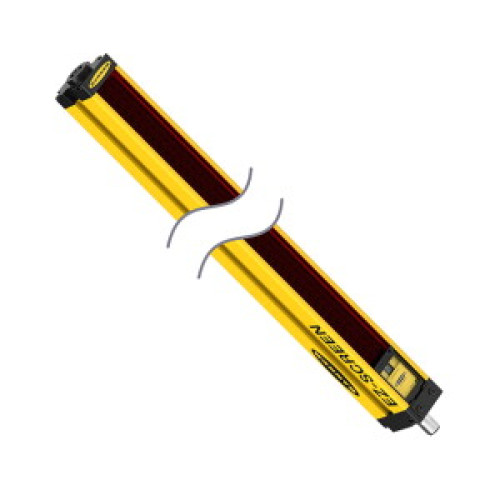

EZ-SCREEN Emitter, Resolution: 30, Range: 18 m (60 ft), Defined Area: 1800 (70.9 in), Housing Length: 1869 (73.6 in), Connection:

Manufacturer's No: SLSE30-1800Q8     Manufacturer: Turck Banner
EZ-SCREEN Emitter, Resolution: 30, Range: 18 m (60 ft), Defined Area: 1800 (70.9 in), Housing Length: 1869 (73.6 in), Connection: 8-pin M12 Connector, No test input

Availability On Request

£2,269.31
  • Light screen for machine safety applications
  • Emitter with operating voltage: 20-28 VDC
  • Maximum range: 18000 mm
  • M12 × 1 male connector, 8-pin
  • Protection class: IP65
  • Adjustments via DIP switch
  • Resolution: 30 mm
  • Scan field: 1800 mm
  • Includes two EZA-MBK-11 mounting brackets; devices 900 mm or longer also include one EZA-MBK-12
  • Personnel safety category 4, PL e according to EN ISO 13849-1:2008

Read more

  • Type 4 according to IEC 61496-1, 2
  • SIL 3 according to IEC 61508


Product

Manufacturer Material ID -
SLSE30-1800Q8
Net Weight -
6.32kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -
Height of sensor -
1869 Millimetre
Length of sensor -
45 Millimetre
Reaction time -
32 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
1800 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Wavelength of the sensor -
950 Nanometre
Width sensor -
36 Millimetre
With restart blockage -
Turck Banner

Availability On Request

£2,269.31
