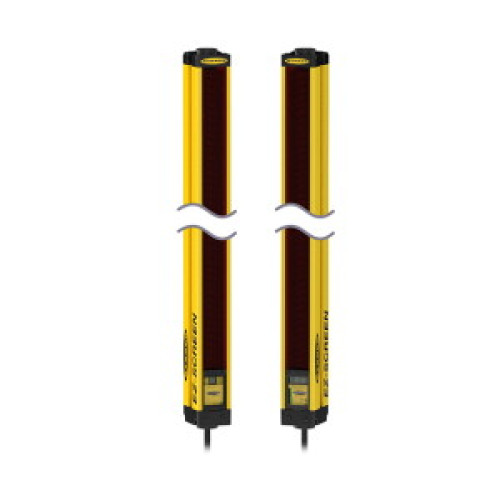

Safety Light Curtain, Emitter/Receiver Pair

Manufacturer's No: SLSR14-1050P8     Manufacturer: Turck Banner
Safety Light Curtain, Emitter/Receiver Pair

Availability Available to order

POA
  • Safety Light Curtain
  • Emitter/Receiver Pair
  • Operating voltage: 20-28 VDC
  • Max. range: 6000 mm
  • Emitter: M12 × 1 male connector, 8-pin
  • Receiver: M12 × 1 male connector, 8-pin
  • Blanking function
  • Protection class: IP65
  • Adjustments via DIP switch
  • Resolution: 14 mm

Read more

  • Scan field: 1050 mm
  • Includes two EZA-MBK-11 mounting brackets
  • Devices with a length of 900 mm or more also include one EZA-MBK-12
  • Operating voltage: 24 VDC ± 15%


Product

Manufacturer Material ID -
SLSR14-1050P8
Net Weight -
2.72kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
0 Degrees celsius
Fade-out possible -

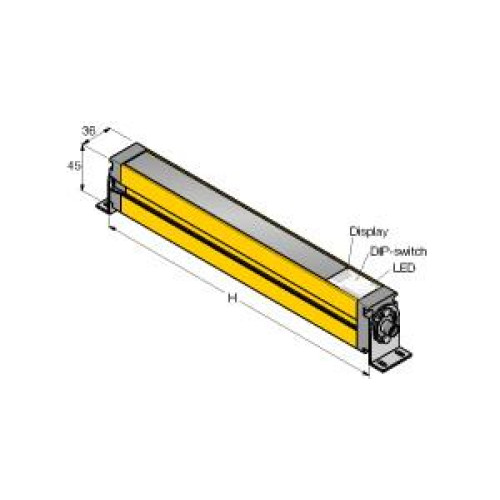

Height of sensor -
1120 Millimetre
Length of sensor -
45 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
36 Millisecond
Resolution of the light curtain -
14 Millimetre
Safety field height -
1050 Millimetre
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Wavelength of the sensor -
950 Nanometre
Width sensor -
36 Millimetre
With restart blockage -
