7TCA091720R0092

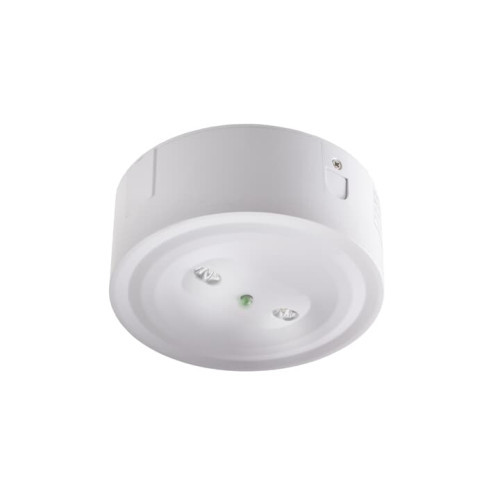

PRIMEVO ESC ROUTE SURF MNT 100

Manufacturer's No: SM100E     Manufacturer: ABB
PRIMEVO ESC ROUTE SURF MNT 100

Availability Back Order

£64.47
  • Model: PRIMEVO ESC ROUTE SURF MNT 100
  • Type: PrimEvo Surface Downlite
  • Voltage: 220-240 Vac, 50 Hz
  • LED: 2 x 3W
  • Operating Temperature: 0-25°C


Product

Manufacturer Material ID -
SM100E
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
CN
UNSPSC -
39111544

Technical Specification

Labelling type -
Sticker
Type of indicator -
Single-sided
Length -
140 Millimetre
Wiring system -
Continuous circuit/emergency circuit
Lamp included -
Energy efficiency class of integrated lamp -
A++, A+, A (LED)
Luminous flux in standby mode -
140 Lumen
Battery chemistry -
NiCd
Colour temperature -
4000 Kelvin
Conductor cross section -
1.5 Square millimetre
Connection type -
Other
Control gear -
Electronic transformer
Cover material -
Plastic matt/satinised
Degree of protection (IP rating) -
IP20
Function -
Escape route lighting
Height/depth -
55 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK10
Light distribution -
Other
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
4.5 Watt
Monitoring equipment -
Test button
Mounting method -
Ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lamps -
2
Number of lighting heads -
1
Number of poles -
3
Outer diameter -
140 Millimetre
Power factor -
0.6
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
120 Lumen
Type of cabling -
Suitable for through wiring
Voltage type -
AC
Width -
140 Millimetre
ABB

Availability Back Order

£64.47
