3027294

SM30 Series: Receiver - Frequency A Stainless Stl, Range: 150 m, Input: 24-240 V ac, Output: SPST Solid-State - Light Operate, 3-p

Manufacturer's No: SM2A30SRLQD     Manufacturer: Turck Banner
SM30 Series: Receiver - Frequency A Stainless Stl, Range: 150 m, Input: 24-240 V ac, Output: SPST Solid-State - Light Operate, 3-pin Mini Integral QD

Availability On Request

£328.46
  • Photoelectric Sensor (Receiver)
  • Opposed Mode Sensor
  • Operating Voltage: 24-240 VAC
  • Max. Range: 150,000 mm
  • Connector: 7/8", 3-pin
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Modulation Frequency: A
  • Requires transmitters with the same frequency
  • Semiconductor Relay Output, SPST

Read more

  • Light Operation


Product

Manufacturer Material ID -
SM2A30SRLQD
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

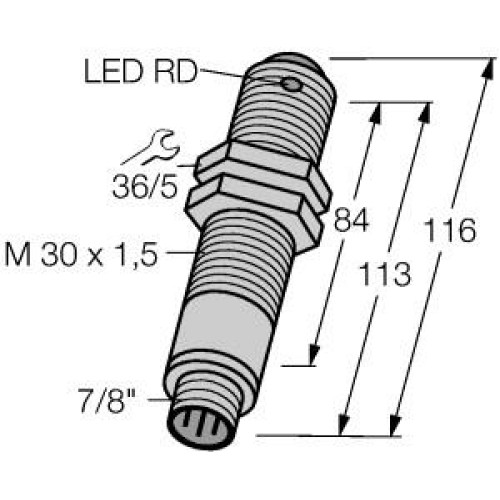

Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
116 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
150000 Millimetre
Rated switching distance -
150000 Millimetre
Reaction time -
10 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector 7/8 inch
Type of switch function -
Other
Type of switching output -
Relay contact
Turck Banner

Availability On Request

£328.46
