3027429

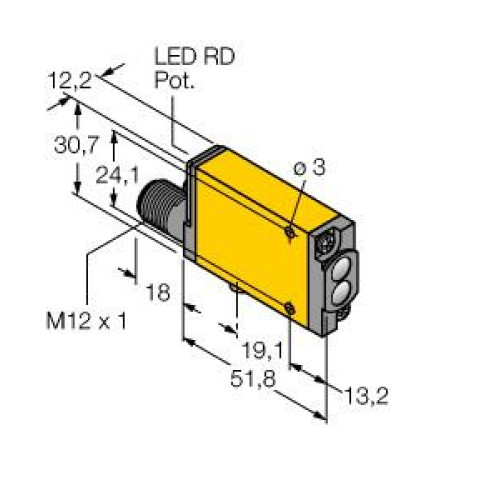

MINI-BEAM: Diffuse, Range: 300, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, Micro 3-pin Integral QD

Manufacturer's No: SM2A312DBZQD     Manufacturer: Turck Banner
MINI-BEAM: Diffuse, Range: 300, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, Micro 3-pin Integral QD

Availability On Request

£179.66
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 24-240 VAC
  • Max. Range: 300 mm
  • 1/2" Connector
  • Protection Class: IP67
  • Sensitivity Adjustable via Potentiometer
  • Alignment Indicator
  • Switching Output: Bipolar
  • Light/Dark Operation


Product

Manufacturer Material ID -
SM2A312DBZQD
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
69.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Reaction time -
8 Millisecond
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Type of switching output -
Relay contact
Wavelength of the sensor -
650 Nanometre
Width sensor -
12.2 Millimetre
Turck Banner

Availability On Request

£179.66
