3025966

MINI-BEAM: Infrared 880 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 2 m (6

Manufacturer's No: SM2A312F     Manufacturer: Turck Banner
MINI-BEAM: Infrared 880 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 2 m (6.5 ft) Cable

Availability On Request

£179.66
  • Type: Photoelectric Sensor for Glass Fibers
  • Operating Voltage: 24-240 VAC
  • Cable Length: 2 meters
  • Cable Type: PVC
  • Protection Class: IP67
  • Sensitivity Adjustment: Via potentiometer
  • Alignment Indicator: Yes
  • Switching Output: Bipolar
  • Light/Dark Operation


Product

Manufacturer Material ID -
SM2A312F
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

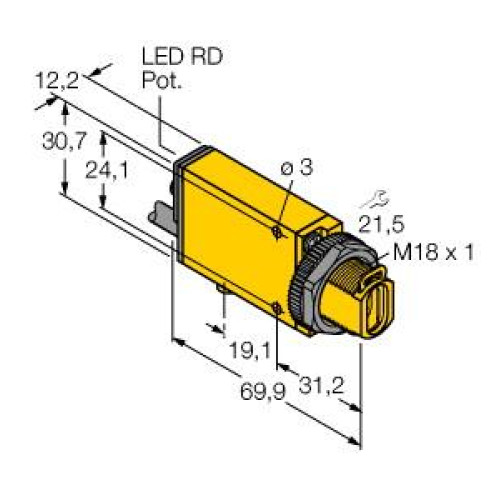

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
69.9 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switching output -
Relay contact
Width amplifier -
12.2 Millimetre
Turck Banner

Availability On Request

£179.66
