3026358

MINI-BEAM: Infrared 880 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 9 m (3

Manufacturer's No: SM2A312F W/30     Manufacturer: Turck Banner
MINI-BEAM: Infrared 880 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 9 m (30 ft) Cable

Availability On Request

£226.84
  • Photoelectric sensor for glass fibers
  • Operating voltage: 24-240 VAC
  • Cable length: 9 meters, PVC material
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Alignment indicator
  • Switching output: bipolar
  • Light/dark operation


Product

Manufacturer Material ID -
SM2A312F W/30
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

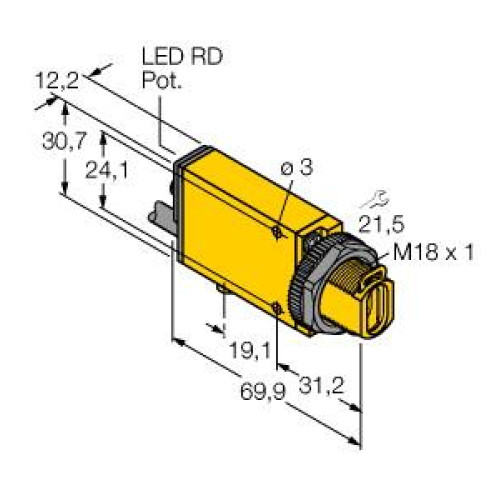

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
69.9 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switching output -
Relay contact
Width amplifier -
12.2 Millimetre
Turck Banner

Availability On Request

£226.84
