3026055

MINI-BEAM: Polarized Retro, Range: 50 - 2 m, Input: 24-240 V ac, Output: SPST Solid-State 2-Wire, 2 m (6.5 ft) Cable

Manufacturer's No: SM2A312LVAG     Manufacturer: Turck Banner
MINI-BEAM: Polarized Retro, Range: 50 - 2 m, Input: 24-240 V ac, Output: SPST Solid-State 2-Wire, 2 m (6.5 ft) Cable

Availability On Request

£186.01
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 24-240 VAC
  • Maximum range: 2000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • Sensitivity adjustable via potentiometer
  • Alignment indicator for easy setup
  • Switching output: bipolar for light/dark operation


Product

Manufacturer Material ID -
SM2A312LVAG
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

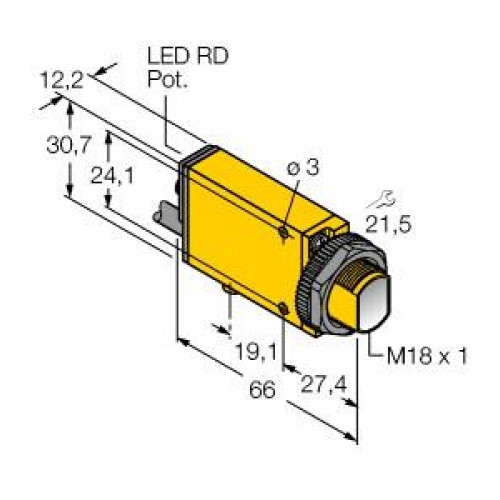

Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
66 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
4 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switching output -
Relay contact
Wavelength of the sensor -
650 Nanometre
Width sensor -
12.2 Millimetre
Turck Banner

Availability On Request

£186.01
