3026887

MINI-BEAM: Divergent Diffuse, Range: 130, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 9 m (30 ft) Cable

Manufacturer's No: SM2A312W W/30     Manufacturer: Turck Banner
MINI-BEAM: Divergent Diffuse, Range: 130, Input: 24-240 V ac, Output: SPST Solid-state 2-Wire, 9 m (30 ft) Cable

Availability On Request

£226.84
  • Type: Photoelectric Sensor, Diffuse Mode
  • Operating Voltage: 24-240 VAC
  • Max. Range: 130 mm
  • Cable Length: 9 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjustable via Potentiometer
  • Alignment Indicator
  • Switching Output: Bipolar
  • Light/Dark Operation


Product

Manufacturer Material ID -
SM2A312W W/30
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

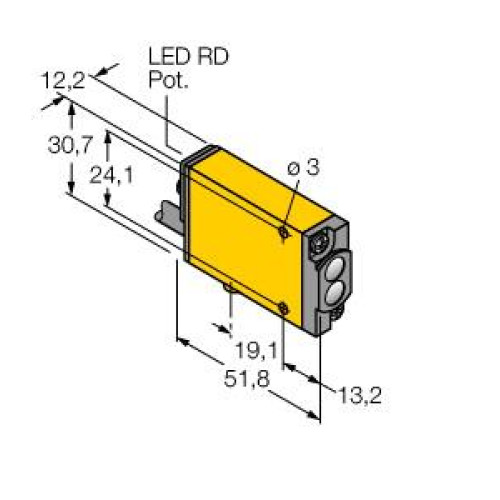

Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
51.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
130 Millimetre
Reaction time -
8 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.2 Millimetre
Turck Banner

Availability On Request

£226.84
