3029543

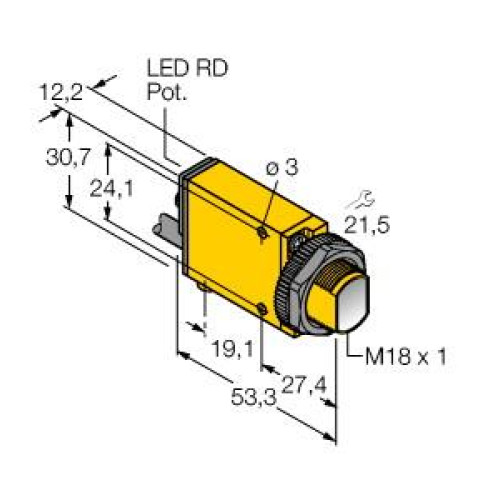

MINI-BEAM: Infrared 880 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in

Manufacturer's No: SM312FQDP     Manufacturer: Turck Banner
MINI-BEAM: Infrared 880 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 150 (6 in) M12 Pigtail QD

Availability On Request

£156.97
  • Photoelectric sensor for glass fibers
  • Operating voltage: 10-30 VDC
  • Cable length: 0.15 m, with male end M12 x 1, 4-pin, PVC
  • Protection class: IP67
  • Sensitivity adjusted via potentiometer
  • Alignment indicator
  • Switching output: bipolar
  • Light/dark operation


Product

Manufacturer Material ID -
SM312FQDP
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
25 Milliampere
Switching frequency -
500 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
12.3 Millimetre
Turck Banner

Availability On Request

£156.97
