3025649

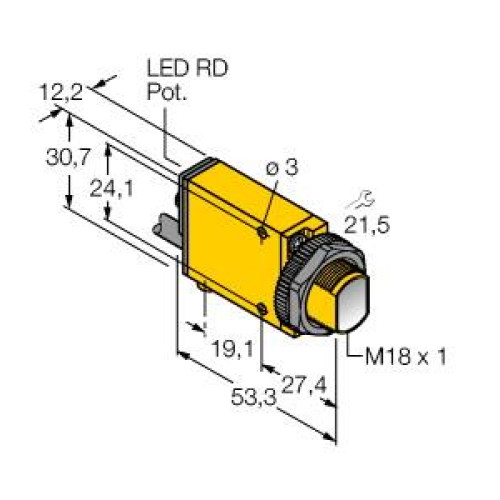

MINI-BEAM: Visible Red 650 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6

Manufacturer's No: SM312FV     Manufacturer: Turck Banner
MINI-BEAM: Visible Red 650 nm Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) cable

Availability Back Order

£137.59
  • Type: MINI-BEAM Visible Red 650 nm Glass Fiber Optic
  • Input: 10-30 V dc
  • Output: Bipolar with 1 NPN and 1 PNP
  • Cable Length: 2 m (6.5 ft)
  • Range: Depends on Fiber


Product

Manufacturer Material ID -
SM312FV
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
30.7 Millimetre
Housing material -
Plastic
Length amplifier -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
25 Milliampere
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
12.3 Millimetre
Turck Banner

Availability Back Order

£137.59
