3026200

MINI-BEAM: High Speed Retro, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, MHS Response Time = 0.3 ms, 2 m (6.5 ft) Cable

Manufacturer's No: SM312LVMHS     Manufacturer: Turck Banner
MINI-BEAM: High Speed Retro, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, MHS Response Time = 0.3 ms, 2 m (6.5 ft) Cable

Availability On Request

£144.27
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 5000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Connection Cable Length: 2 m
  • Max. Range: 300 mm
  • Reduced Response Time: 0.3 ms
  • Switching Output: Bipolar

Read more

  • Light/Dark Operation


Product

Manufacturer Material ID -
SM312LVMHS
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

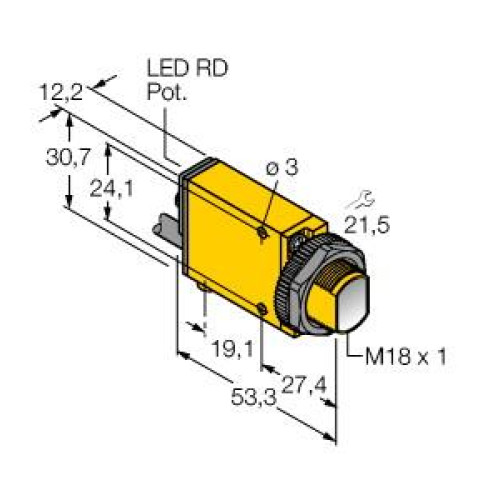

Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
53.3 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
0.3 Millisecond
Setting procedure -
Other
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
12.3 Millimetre
