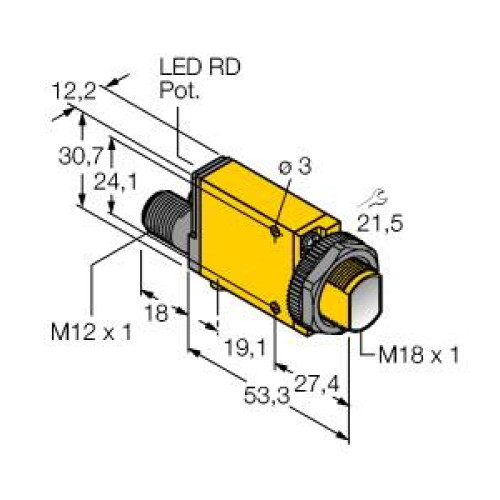

SM312LVMHSQDM5 V MINIBEAM SCAN, 4-pin M12 Integral QD

Manufacturer's No: SM312LVMHSQDM5V     Manufacturer: Turck Banner
SM312LVMHSQDM5 V MINIBEAM SCAN, 4-pin M12 Integral QD

Availability On Request

£288.54
  • Type: Photoelectric Retroreflective Sensor
  • Operating Voltage: 5-30 VDC
  • Maximum Range: 5000 mm
  • Connector: Male M12 × 1, 4-pin
  • Protection Class: IP67
  • Sensitivity Adjustable via Potentiometer
  • Alignment Indicator
  • Switching Output: Bipolar
  • Light/Dark Operation at 5 VDC (TTL)


Product

Manufacturer Material ID -
SM312LVMHSQDM5V
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
71.3 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
0.3 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
12.3 Millimetre
