3025725

MINI-BEAM: Receiver, Range: 30 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) cable

Manufacturer's No: SM31RL     Manufacturer: Turck Banner
MINI-BEAM: Receiver, Range: 30 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) cable

Availability On Request

£122.49
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 30000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjustable via Potentiometer
  • Alignment Indicator
  • Switching Output: Bipolar
  • Light/Dark Operation


Product

Manufacturer Material ID -
SM31RL
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

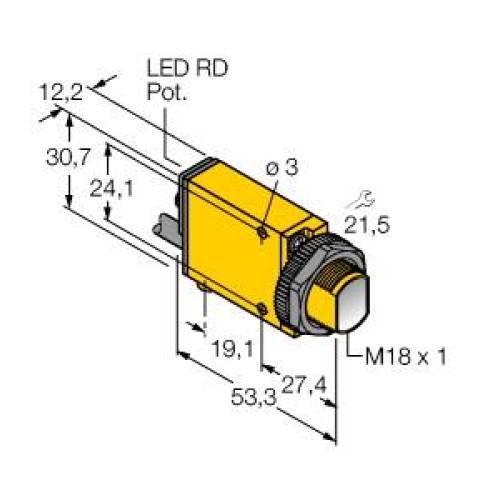

Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
53.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
30000 Millimetre
Min. reflector distance -
0 Millimetre
Rated switching distance -
30000 Millimetre
Reaction time -
1 Millisecond
Setting procedure -
Other
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
12.3 Millimetre
Turck Banner

Availability On Request

£122.49
